37.510 Ft (29.535 Ft + ÁFA)
Menny.:db

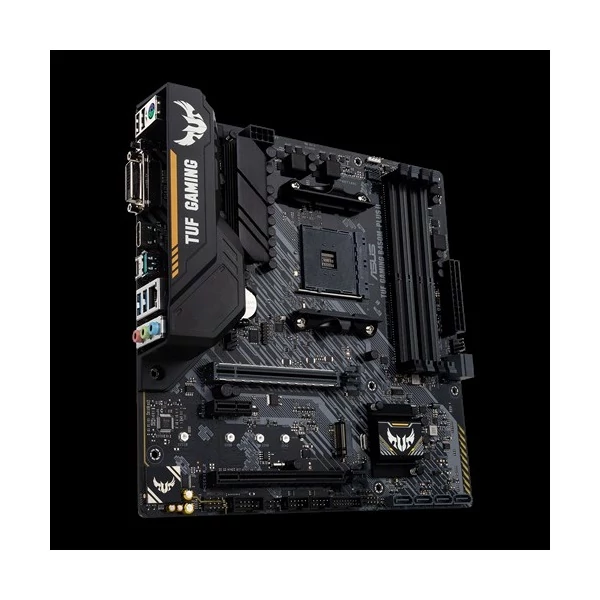

ASUS Alaplap AM4 TUF GAMING B450M-PLUS II AMD B450, mATX

Gyártó cikkszám: TUF GAMING B450M-PLUS II
Cikkszám: 289767
Gyártó: Asus pcc
Webáruház raktár: 79 db raktáron
Informatikai webáruház - Lansoft
37.510 Ft (29.535 Ft + ÁFA)
Menny.:db
Kívánságlistára teszem

Leírás és Paraméterek

  • CPU
    AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors *
    * Refer to www.asus.com for CPU support list
  • Chipset
    AMD B450
  • Memory
    3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
    4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3533(O.C)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *
    Dual Channel Memory Architecture
    ECC Memory (ECC mode) support varies by CPU.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * The maximum memory frequency supported varies by processor.
  • Graphic
    Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
    1 x HDMI 2.0b
    1 x DVI-D
    *Graphics specifications may vary between CPU types.
  • Multi-GPU Support
    Supports AMD 2-Way CrossFireX Technology
  • Expansion Slots
    3rd/2nd/1st Gen AMD Ryzen™ Processors
    1 x PCIe 3.0/2.0 x16 (x16 mode)
    2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
    1 x PCIe 3.0/2.0 x16 (x8 mode)
    Athlon™ with Radeon™ Vega Graphics Processors
    1 x PCIe 3.0/2.0 x16 (max at x4 mode)
    AMD B450 chipset
    1 x PCIe 2.0 x16 (x4 mode)
    1 x PCIe 2.0 x1
  • Storage
    Total supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports
    3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics :
    1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support*1
    Athlon™ with Radeon™ Vega Graphics Processors :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*1
    3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors :
    2 x SATA 6Gb/s port(s),
    Support Raid 0, 1, 10
    AMD B450 chipset :
    4 x SATA 6Gb/s port(s),
    Support Raid 0, 1, 10
  • LAN
    Realtek RTL8111H 1Gb Ethernet
    TUF LANGuard
  • Audio
    Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
    Audio Feature :
    - Exclusive DTS Custom for GAMING Headsets.
    - Audio cover
    - Audio Shielding
    - Dedicated audio PCB layers
    - Premium Japanese audio capacitors
  • USB Ports
    Rear USB Port ( Total 6 )
    1 x USB 3.2 Gen 2 port(s)(1 x Type-A)
    3 x USB 3.2 Gen 1 port(s)(2 x Type-A +1 x Type-C)
    2 x USB 2.0 port(s)(2 x Type-A)
    Front USB Port ( Total 6 )
    2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
    4 x USB 2.0 port(s)(4 x Type-A)
  • Software Features
    ASUS Exclusive Software
    Armoury Crate
    - Aura Creator
    - Aura Sync
    - AI Noise-Canceling Microphone
    AI Suite 3
    - Performance And Power Saving Utility
    TurboV EVO
    EPU
    Digi+ VRM
    Fan Xpert 2+
    - EZ update
    - PC Cleaner
    TUF GAMING CPU-Z
    AI Charger
    ASUS Turbo LAN
    DAEMON Tools
    DTS Custom for GAMING Headsets
    Norton Anti-virus software (Free Trial for 60 days)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode

  • ASUS Special Features
    ASUS TUF PROTECTION
    - ASUS DIGI+ VRM
    - ASUS Enhanced DRAM Overcurrent Protection
    - ASUS ESD Guards
    - TUF LANGuard
    - ASUS Overvoltage Protection
    - ASUS SafeSlot
    - ASUS Stainless-Steel Back I/O
    ASUS Q-Design
    - ASUS Q-DIMM
    - ASUS Q-Slot
    ASUS Thermal Solution
    - Aluminum heatsink design
    ASUS EZ DIY
    - BIOS FlashBack™ button
    - BIOS FlashBack™ LED
    AURA Sync
    - AURA RGB header

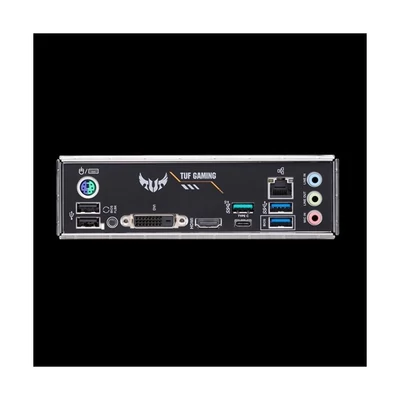

  • Back I/O Ports
    1 x PS/2 keyboard/mouse combo port(s)
    1 x DVI-D
    1 x HDMI
    1 x LAN (RJ45) port(s)
    1 x USB 3.2 Gen 2 (teal blue)Type-A,
    2 x USB 3.2 Gen 1 (blue) Type-A
    1 x USB 3.2 Gen 1 (black) Type-C
    2 x USB 2.0
    3 x Audio jack(s)
    1 x BIOS FlashBack Button(s)
  • Internal I/O Ports
    1 x CPU Fan connector(s)
    2 x Chassis Fan connector(s)
    1 x Aura RGB Strip Header
    1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x SPI TPM header
    6 x SATA 6Gb/s connector(s)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin EATX 12V Power connectors
    1 x Front panel audio connector(s) (AAFP)
    1 x Clear CMOS jumper(s)
    1 x System panel connector
    1 x COM port header
    1 x Speaker connector
  • Accessories
    User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x Supporting DVD
    1 x TUF Gaming Sticker
    1 x TUF Certification card(s)
    1 x M.2 SSD screw package(s)
  • BIOS
    256 Mb Flash ROM, UEFI AMI BIOS
  • Manageability
    WOL by PXE
  • Operating System
    Windows® 10 64-bit
    Windows® 7 64-bit *2
  • Form Factor
    mATX Form Factor
    9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
  • Note
    *1 The M.2 slot shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed.
    *2 To support Windows 7 64-bit, please install an AMD Ryzen™ 2nd Generation or Ryzen™ 1st Generation Processor.
Audio 7.1
Chipset gyártó AMD
D-Sub Nincs
Display Port Nincs
DVI Van
Foglalat típusa AM4
Form Factor mATX
Grafikus foglalat 2 x PCI-Ex16x
Gyártó ASUS
HDMI Van
Kivitel dobozos
LAN1 10/100/1000 Mb/s
M.2 foglalat Van
Max memória 128
Memória foglalatok száma 4
Memória órajel 2666
Memória típus DDR4
Párhuzamos port Nincs
PCI-E foglalatok száma 1
PS/2 Port 1
Quad Channel Nincs
Raid Igen
SATA III 6
Soros port Nincs
Thunderbolt Nincs
USB 2.0 6
USB 3.1 6
VGA integrált Nincs
Wireless Nincs
