Leírás és Paraméterek

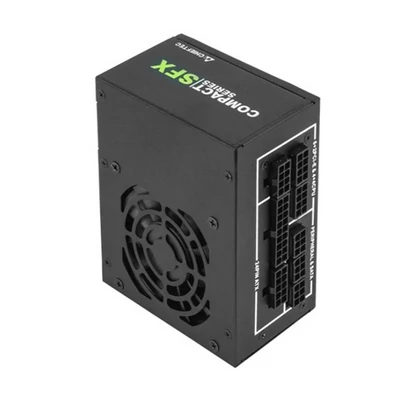

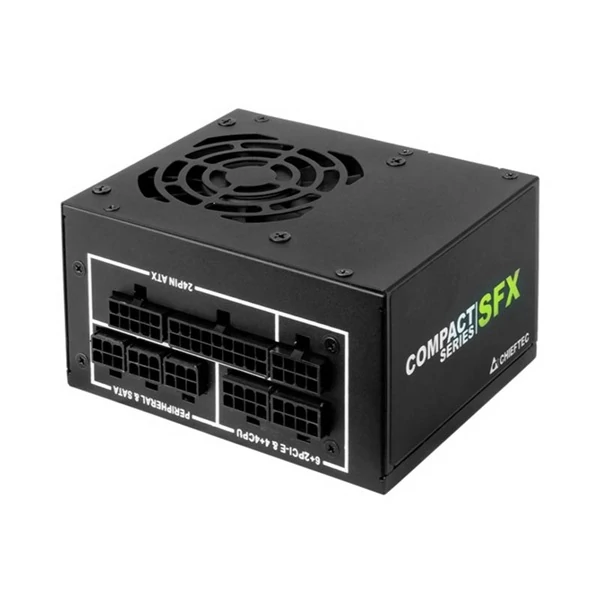

| Model | COMPACT 550W |
|---|---|
| Article no. | CSN-550C |
| EAN code | 4710713235762 |
| Weight (without/with package) | 1.6 kg / 1.98 kg |
| AC Input | 100 - 240V / 6A |
| Frequency | 47 - 63Hz |
| +5V | 15A |
| +3,3V | 18A |
| +5V & +3,3V combined | 90W |
| +12V1 | 45.8A |
| +12V2 | - |
| +12V1, +12V2 combined | 549W |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VSB | 3,0A / 15W |
| Maximum Power | 550W |
| 20+4 PIN ATX | 1 |
|---|---|
| 8 PIN EPS(4+4) | 1 |
| 8 PIN PCIe (6+2) | 2 |
| SATA | 6 |
| MOLEX/FLOPPY | 3/1 |
| 20+4 PIN ATX | 450 |
|---|---|
| 8 PIN EPS(4+4) | 450 |
| 8 PIN PCIe (6+2) | 2x 450 |
| SATA | 2x 450/150/150 |
| MOLEX/FLOPPY | 450/150/150/150 |
| ATX12V Version | ATX 12V 2.3 |
|---|---|
| Efficiency | 80+Gold |
| Dimension (DxWxH) | 100 mm x 125 mm x 64 mm |
| PFC | Active PFC (0,9) |
| Fan | 80mm silent fan |
| Security | AFC (Automatic Fan speed Control) OCP (Over Current Protection) OPP (Over Power Protection) OTP (Over Temperature Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |
| Warranty | 24 Months |
| Gyártó | CHIEFTEC |
| Hűtés típusa | Low Noise (8cm) |
| Teljesítmény | 550 |
