D-LINK 2 Slot-os Rack kiegészítő, DPS-800

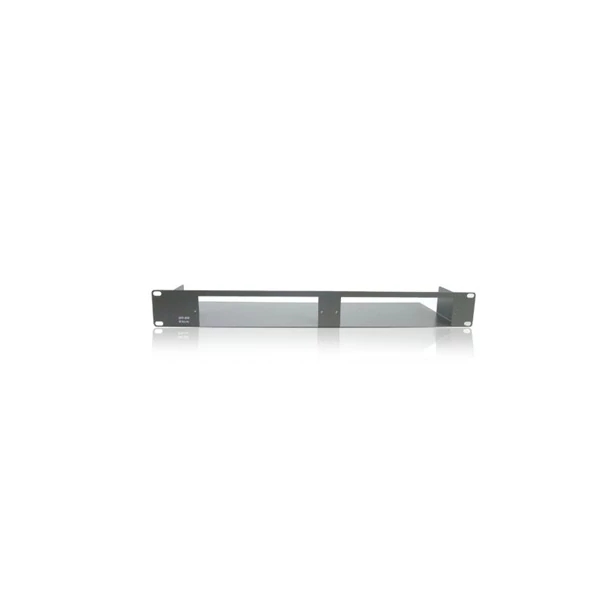

• (2) Slot, 1U, 19 inch Rackmounting Chassis For DPS-200, DPS-300, and/or DPS-500 Units

Hold Up Time


• 16ms at Max Load and 115VAC Input at 60Hz Output Drop Down to 95% Voltage

Efficiency


• 75% Min. At Max Load and 115VAC Input

Input Specifications

AC Input Voltage Rating


• 100VAC to 240VAC

AC Input Voltage Range


• 90VAC to 264VAC

AC Input Frequency


• 47Hz to 63Hz

Max. In-Rush Current


• 30A Max @ 115VAC, 60A Max @ 230VAC at 25° Ambient Cold Start

Output Specifications

Output Voltage


• +12V

Min. Load Current


• 0.5A

Max Load Current


• 5.0A

Line Regulation


• (+/-) 2% Measured Output Load From (+/-) 10% Rated Load

Physical & Environmental

Safety


• UL and/or CSA

Dimensions RPSU (WxDxH)


• (6.69 x 7.48 x 1.77 inches) RPSU Units

Dimensions Chassis (WxDxH)


• (19.06 x 7.09 x 2.17 inches) DPS-800 Chassis

Weight RPSU


• (2.2 lbs) Weight Is Without DPS-800 Chassis

Weight Chassis


• (2.0 lbs) Weight Is Without RPSU Units

Temperature


• Operating: 0° - 40° C (32° - 104° F)

Storage


• -25° - 55° C (-13° - 131° F)

Humidity


• Operating: 20% to 80% RH, Non-Condensing

Gyártó DLINK Jelleg rack tartó konzol
