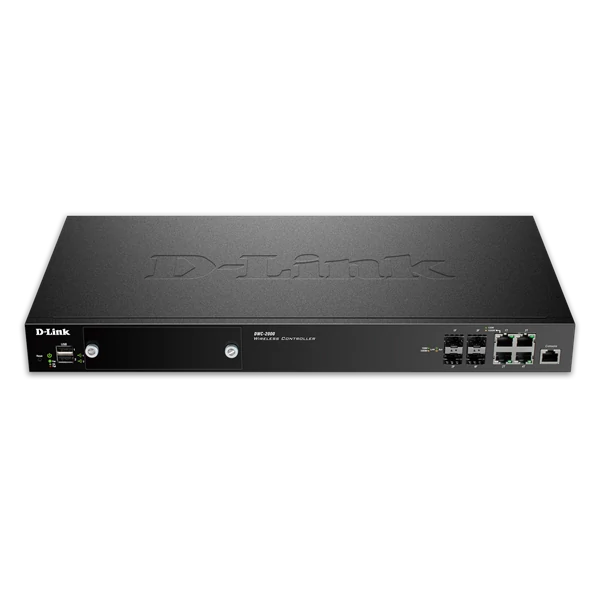

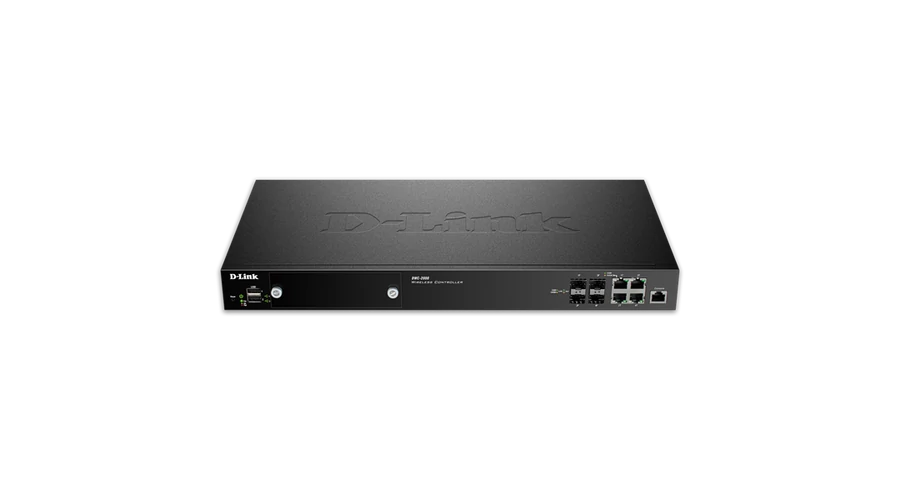

D-LINK Cloud Controller, DWC-2000

Ports

• 4 10/100/1000 RJ-45 and 4 100/1000 SFP Combo ports

USB

• 2 USB 2.0 ports

Console Port

• 1 RJ-45

Extension Slot

• 1 Hard disk driver slot

Performance

Maximum Access Points per Unit¹

• 64/ 256 (default/ upgrade)

Maximum Access Points per Cluster¹

• 256/ 1024 (default/ upgrade)

Concurrent Captive Portal Authentication Users

• 2048

Access Point Management

Model of Managed Aps

• DWL-8610AP
• DWL-8600AP
• DWL-6700AP
• DWL-6600AP
• DWL-6610AP
• DWL-3600AP
• DWL-2600AP

AP Discovery & Control

• Layer-2
• Layer-3

AP Monitoring

• Managed AP
• Rogue AP
• Authentication Fail AP
• Standalone AP

Client Monitoring

• Authenticated Client
• Rogue Client
• Authentication Fail Client
• Ad-hoc Client

Centralised RF/ Security Policy Management

• Supported

Roaming

Fast Roaming

• Supported

Intra-controller/ Inter-controller Roaming

• Supported

Intra-subnet/ Inter-subnet Roaming

• Supported

Security

Wireless Security

• WEP
• Dynamic WEP
• WPA Personal/Enterprise
• WPA2 Personal/Enterprise

Wireless Intrusion Detection & Prevention System (WIDS)

• Rogue and Valid AP Classification
• Rogue AP Mitigation

LAN Security

• 802.1x port-based access control and guest VLAN

Authentication

• Captive Porta
• MAC Authentication

VLAN

VLAN Group

• Up to 255 entries

802.1q VLAN Tagging

• Supported

Subnet-based VLAN

• Supported

Port-based VLAN

• Supported

User Account Management

Permanent Account Authentication Method

• Local Database
• External RADIUS
• External LDAP
• External POP3
• External Windows Active Directory (wired only)

Temporary Account Authentication Method

• Local Database

Temporary Account Creation

• Single or batch account generation by system with customised active or usage expired time

Payment Gateway

• Authorize.net
• Paypal
• SecurePay
• World Pay

System Management

Web-based User Interface

• HTTP

Command Line

• Supported

SNMP

• v1, v2c, v3

Physical/Environmental

Power Supply

• 100-240 V AC, 50-60 Hz Internal power supply

Max. Power Consumption

• 26.95 W

Dimensions

• 440 x 310 x 44 mm (17.3 x 12.2 x 1.73 inches)

Operating Temperature

• 0 to 40 °C (32 to 104 °F)
