Leírás és Paraméterek
|
Hardware
|
|
|
Chipset
|
• RTL8153
|
|
Interfaces
|
• One USB Type-C connector
• Three USB 3.0 Type-A ports
• One USB Type-C/PD 3.0 port
• One HDMI port
• One RJ-45 Ethernet port (10/100/1000 Mbps)
|
|
LEDs
|
• Link (per Ethernet port)
- Solid white - Ethernet connection
• Speed (per Ethernet port)
- Flashing orange - data transmission
|
|
General
|
|
|
Standards
|
• USB 3.0
• USB 2.0
• USB 1.1
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
|
|
Data rate
|
• Up to 5 Gbps (USB 3.0)
• Up to 1000 Mbps (Ethernet)
|
|
Resolution
|
• 4K @ 30 Hz
|
|
System requirements
|
• Available USB Type-C port
• Windows 7/8/8.1/10 and above, macOS (OS X 10.8 and above)
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 103 x 45.5 x 15 mm
|
|
Weight
|
• 0.08 kg
|
|
Environmental Conditions
|
|
|
Power input
|
• From computer (USB bus powered)
|
|
Supplied charging voltage/current
|
• 20 V / 3 A (PD 3.0)
|
|
Temperature
|
• Operating: 0 to 45 °C
• Storage: -10 to 70 °C
|
|
Humidity
|
• Operating: up to 85% non-condensing
• Storage: up to 85% non-condensing
|
|
Package Contents
|
|
|

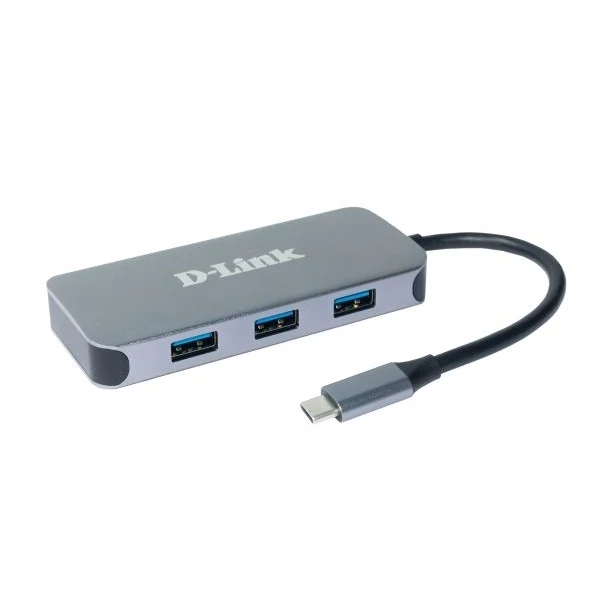

• DUB-2335 docking station
• Quick Installation Guide
• Warranty documents
|
|
| Gyártó | DLINK |
