Leírás és Paraméterek
-
CPU
- AMD Socket AM4, support for : AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
-
Chipset
- AMD A520
-
Memory
- 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
ECC memory (ECC mode) support varies by CPU - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
-
Onboard Graphics
Integrated Graphics Processor:- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
-
Audio
- Realtek® ALC1200 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
-
LAN
- Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
-
Expansion Slots
CPU:- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
- 3 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2, PCIEX1_3)
* The PCIEX1_2 and PCIEX1_3 slots share bandwidth with the PCIEX2 slot. The PCIEX2 slot becomes unavailable when a device is installed in the PCIEX1_2 or PCIEX1_3 slot.
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)
-
Storage Interface
CPU:- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, and RAID 10
-
USB
CPU:- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 3 x USB 3.2 Gen 1 ports on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 4 x USB 2.0/1.1 ports available through the internal USB headers
- 4 x USB 2.0/1.1 ports on the back panel
-
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x water cooling CPU fan header
- 3 x system fan headers
- 2 x addressable LED strip headers
- 2 x RGB LED strip headers
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
- 1 x serial port header
- 1 x Clear CMOS jumper
- 1 x Q-Flash Plus button
-

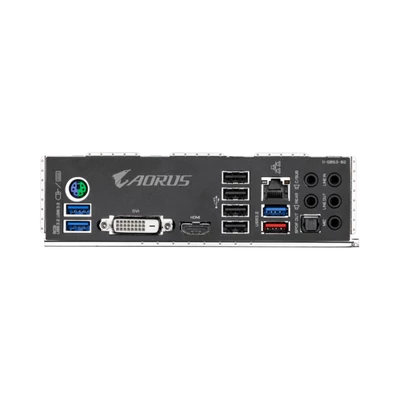

Back Panel Connectors
- 1 x PS/2 keyboard/mouse port
- 1 x DVI-D port
- 1 x HDMI port
- 1 x USB 3.2 Gen 2 Type-A port (red)
- 3 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 1 x optical S/PDIF Out connector
- 5 x audio jacks
-
I/O Controller
- iTE® I/O Controller Chip
-
H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Overheating warning
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
-
BIOS
- 1 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
-
Unique Features
- Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer - Support for Q-Flash Plus
- Support for Q-Flash
- Support for Xpress Install
- Support for APP Center
-
Bundled Software
- Norton® Internet Security (OEM version)
- Realtek® 8118 Gaming LAN Bandwidth Control Utility
-
Operating System
- Support for Windows 11 64-bit
- Support for Windows 10 64-bit
-
Form Factor
- ATX Form Factor; 30.5cm x 24.4cm
-
Remark
- Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
- Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Audio | 7.1 HD |
Chipset gyártó | AMD |
D-Sub | Nincs |
Display Port | Nincs |
DVI | Van |
Foglalat típusa | AM4 |
Form Factor | mATX |
Grafikus foglalat | 2 x PCI-Ex16x |
Gyártó | GIGABYTE |
HDMI | Van |
Kivitel | dobozos |
LAN1 | 10/100/1000 Mb/s |
M.2 foglalat | Van |
Max memória | 128 |
Memória foglalatok száma | 4 |
Memória órajel | 3200 |
Memória típus | DDR4 |
Párhuzamos port | Nincs |
PCI-E foglalatok száma | 3 |
PS/2 Port | 1 |
Quad Channel | Nincs |
Raid | Igen |
SATA III | 4 |
Soros port | Nincs |
Thunderbolt | Nincs |
USB 2.0 | 8 |
USB 3.1 | 6 |
VGA integrált | Nincs |
Wireless | Nincs |
