23.220 Ft (18.283 Ft + ÁFA)
Menny.:db

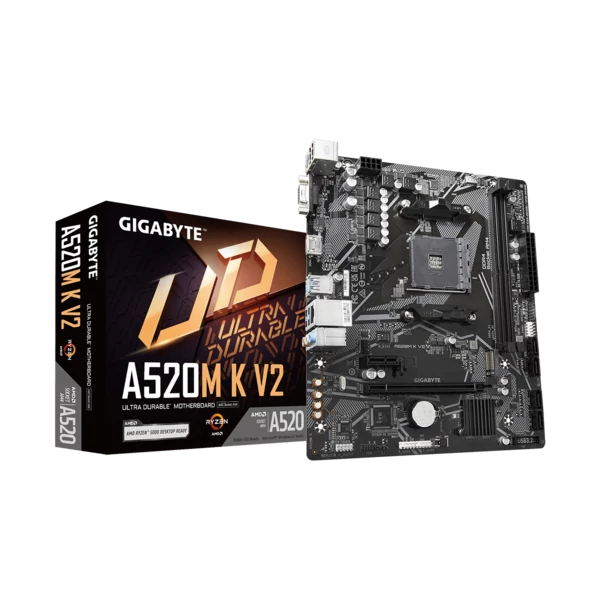

GIGABYTE Alaplap AM4 A520M K V2 AMD A520, mATX

Gyártó cikkszám: A520M K V2
Cikkszám: 338184
Gyártó: Gigabyte
Webáruház raktár: 97 db raktáron
Informatikai webáruház - Lansoft
23.220 Ft (18.283 Ft + ÁFA)
Menny.:db
Kívánságlistára teszem

Leírás és Paraméterek

  • CPU

    1. AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors
    (Please refer "CPU Support List" for more information.)
  • Chipset

    1. AMD A520
  • Memory

    1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    2. Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics

    Integrated Graphics Processor:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    Maximum shared memory of 16 GB
  • Audio

    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • LAN

    1. Realtek® GbE LAN chip (1 Gbps/100 Mbps)
  • Expansion Slots

    CPU:
    1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
    Chipset:
    1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
  • Storage Interface

    CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
    Chipset:
    1. 4 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, and RAID 10
  • USB

    CPU:
    1. 4 x USB 3.2 Gen 1 ports on the back panel
    Chipset:
    1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors

    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x system fan header
    5. 1 x M.2 Socket 3 connector
    6. 4 x SATA 6Gb/s connectors
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x USB 3.2 Gen 1 header
    10. 2 x USB 2.0/1.1 headers
    11. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    12. 1 x speaker header
    13. 1 x Clear CMOS jumper
    14. 1 x chassis intrusion header
  • Back Panel Connectors

    1. 1 x PS/2 keyboard/mouse port
    2. 1 x D-Sub port
    3. 1 x HDMI port
    4. 4 x USB 3.2 Gen 1 ports
    5. 2 x USB 2.0/1.1 ports
    6. 1 x RJ-45 port
    7. 3 x audio jacks
  • I/O Controller

    1. iTE® I/O Controller Chip
  • H/W Monitoring

    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Fan fail warning
    5. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS

    1. 1 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features

    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash
    3. Support for Xpress Install
  • Bundled Software

    1. Norton® Internet Security (OEM version)
    2. LAN bandwidth management software
  • Operating System

    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit
  • Form Factor

    1. Micro ATX Form Factor; 23.3cm x 19.8cm
  • Remark

    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Audio 7.1 HD
Chipset gyártó AMD
D-Sub Van
Display Port Nincs
DVI Nincs
Foglalat típusa AM4
Form Factor mATX
Grafikus foglalat PCI-Ex16 3.0
Gyártó GIGABYTE
HDMI Van
Kivitel dobozos
LAN1 10/100/1000 Mb/s
M.2 foglalat Van
Max memória 64
Memória foglalatok száma 2
Memória órajel 3200
Memória típus DDR4
Párhuzamos port Nincs
PCI-E foglalatok száma 1
PS/2 Port 1
Raid Igen
SATA III 4
Soros port Nincs
Thunderbolt Nincs
USB 2.0 6
USB 3.1 6
VGA integrált Nincs
Wireless Nincs
