89.220 Ft (70.252 Ft + ÁFA)
Menny.:db

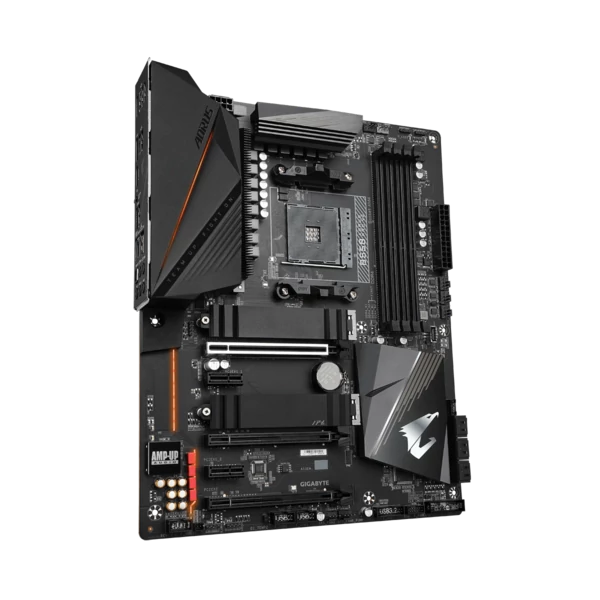

GIGABYTE Alaplap AM4 B550 AORUS PRO V2 AMD B550, ATX

Gyártó cikkszám: B550 AORUS PRO V2
Cikkszám: 302563
Gyártó: Gigabyte
Webáruház raktár: Nincs raktáron
Informatikai webáruház - Lansoft
89.220 Ft (70.252 Ft + ÁFA)
Menny.:db
Kívánságlistára teszem

Leírás és Paraméterek

  • CPU
    1. AMD Socket AM4, support for : AMD Ryzen™ 5000 Series / 3rd Generation AMD Ryzen™ processors / 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. AMD B550
  • Memory
    1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    2. AMD Ryzen™ 5000 series Processors:
      Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
    3. 3rd Gen AMD Ryzen™ Processors:
      Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
    4. 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
      Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
    5. Dual channel memory architecture
    6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    8. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:
    1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    Maximum shared memory of 16 GB
  • Audio
    1. Realtek® ALC1220-VB codec
      * The back panel line out jack supports DSD audio.
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
  • LAN
    1. Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
  • Expansion Slots
    1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    1. 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
    2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
    1. Supporting PCIe 3.0 x4 mode
      * The M2B_SB connector shares bandwidth with the PCIEX4 slot. The PCIEX4 slot will become unavailable when an SSD is installed in the M2B_SB connectors.
    1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
    1. Supporting PCIe 3.0 x2 mode
      * The PCIEX2 slot shares bandwidth with the SATA3 4, 5 connectors. The PCIEX2 slot will become unavailable when a device is installed in the SATA3 4 or SATA3 5 connector.
    2 x PCI Express x1 slots
  • Storage Interface
    1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
    1. 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
    2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
    1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
    1. support PCIe 3.0 x4/x2 SSDs
    6 x SATA 6Gb/s connectors, integrated in the Chipset:
    1. Support for RAID 0, RAID 1, and RAID 10
  • USB
    CPU:
    1. 2 x USB 3.2 Gen 1 ports on the back panel
    2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    Chipset:
    1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
    2. 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
    3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    4. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    5. 2 x USB 2.0/1.1 ports on the back panel
    Chipset+2 USB 2.0 Hubs:
    1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 2 x M.2 Socket 3 connectors
    4. 6 x SATA 6Gb/s connectors
    5. 1 x CPU fan header
    6. 1 x water cooling CPU fan header
    7. 4 x system fan headers
    8. 2 x system fan/water cooling pump headers
    9. 1 x CPU cooler LED strip/RGB LED strip header
    10. 2 x addressable LED strip headers
    11. 2 x RGB LED strip headers
    12. 1 x front panel header
    13. 1 x front panel audio header
    14. 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
    15. 1 x USB 3.2 Gen 1 header
    16. 2 x USB 2.0/1.1 headers
    17. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    18. 2 x temperature sensor headers
    19. 1 x Thunderbolt™ add-in card connector
    20. 1 x Clear CMOS jumper
    *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
  • Back Panel Connectors
    1. 1 x HDMI port
    2. 2 x USB 3.2 Gen 1 ports
    3. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
    4. 2 x USB 3.2 Gen 2 Type-A ports (red)
    5. 6 x USB 2.0/1.1 ports
    6. 1 x Q-Flash Plus button
    7. 1 x RJ-45 port
    8. 1 x optical S/PDIF Out connector
    9. 5 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Overheating warning
    6. Fan fail warning
    7. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • BIOS
    Audio 7.1 HD
    Chipset gyártó AMD
    D-Sub Nincs
    Display Port Nincs
    DVI Nincs
    Foglalat típusa AM4
    Form Factor ATX
    Grafikus foglalat 3 x PCI-Ex16
    Gyártó GIGABYTE
    HDMI Van
    Kivitel dobozos
    LAN1 100/1000/2500 Mb/s
    M.2 foglalat Van
    Max memória 128
    Memória foglalatok száma 4
    Memória órajel 3200
    Memória típus DDR4
    Párhuzamos port Nincs
    PCI-E foglalatok száma 2
    Quad Channel Nincs
    Raid Igen
    SATA III 6
    Soros port Nincs
    Thunderbolt Nincs
    USB 2.0 10
    USB 3.1 8
    VGA integrált Nincs
    Wireless Nincs
