GIGABYTE Alaplap S1200 H510M S2H V2 INTEL H510, mATX
33.160 Ft (26.110 Ft + ÁFA)
Menny.:db
Értesítés

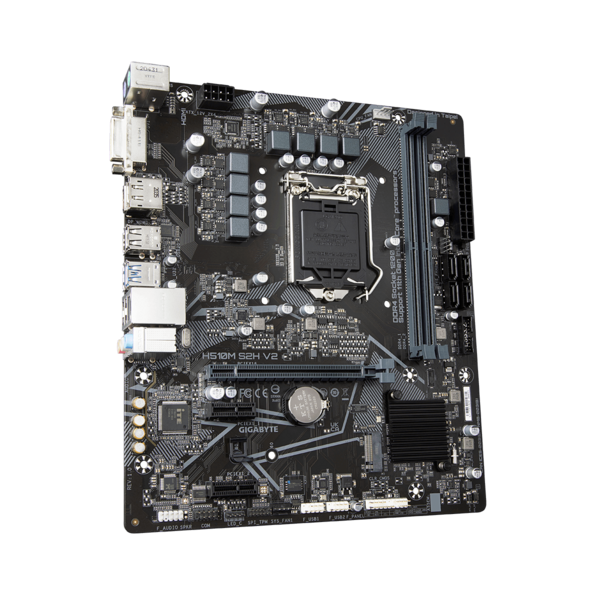

GIGABYTE Alaplap S1200 H510M S2H V2 INTEL H510, mATX

Gyártó cikkszám: H510M S2H V2
Cikkszám: 315375
Gyártó: Gigabyte
Webáruház raktár: Nincs raktáron
Informatikai webáruház - Lansoft
33.160 Ft (26.110 Ft + ÁFA)
Menny.:db
Értesítés
Kívánságlistára teszem

Leírás és Paraméterek

  • CPU
    LGA1200 package:
    1. 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
    2. 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
      * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
    3. L3 cache varies with CPU
    (Please refer to "CPU Support List" for more information.)
  • Chipset
    1. Intel® H510 Express Chipset
  • Memory
    1. 11th Generation Intel® Core™ i9/i7/i5 processors:
      Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
    2. 10th Generation Intel® Core™ i9/i7 processors:
      Support for DDR4 2933/2666/2400/2133 MHz memory modules
    3. 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
      Support for DDR4 2666/2400/2133 MHz memory modules
    4. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    5. Dual channel memory architecture
    6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    8. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    2. 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
      * Support for HDMI 1.4 version and HDCP 2.3.
    3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
      * Support for DisplayPort 1.2 version and HDCP 2.3
    Support for up to 2 displays at the same time
    (Graphics specifications may vary depending on CPU support.)
  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
  • LAN
    1. Realtek® GbE LAN chip (1 Gbit/100 Mbit)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16
      (The PCI Express x16 slot conforms to PCI Express 4.0 standard.)*
      * Supported by 11th Generation processors only.
    2. 2 x PCI Express x1 slots
      (The PCI Express x1 slots conform to PCI Express 3.0 standard.)
  • Storage Interface
    Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
      * The PCIEX1_1 slot shares bandwidth with the M.2 connector. When the PCIEX1_1 slot is populated, the M.2 connector supports up to PCIe 3.0 x2 SSD only.
    2. 4 x SATA 6Gb/s connectors
      * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
  • USB
    Chipset:
    1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    Chipset+USB 2.0 Hub:
    1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB header)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 4 x SATA 6Gb/s connectors
    4. 1 x CPU fan header
    5. 2 x system fan headers
    6. 1 x RGB LED strip header
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x USB 3.2 Gen 1 header
    10. 2 x USB 2.0/1.1 headers
    11. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    12. 1 x serial port header
    13. 1 x Clear CMOS jumper
    *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
  • Back Panel Connectors
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x DVI-D port
    4. 1 x DisplayPorts
    5. 1 x HDMI port
    6. 2 x USB 3.2 Gen 1 ports
    7. 4 x USB 2.0/1.1 ports
    8. 1 x RJ-45 port
    9. 3 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • Audio 7.1 HD Chipset gyártó Intel D-Sub Nincs Display Port Van DVI Van Foglalat típusa S1200 Form Factor mATX Grafikus foglalat PCI-Ex16 Gyártó GIGABYTE HDMI Van Kivitel dobozos LAN1 10/100/1000 Mb/s M.2 foglalat Van Max memória 64 Memória foglalatok száma 2 Memória órajel 3200 Memória típus DDR4 Párhuzamos port Nincs PCI-E foglalatok száma 2 PS/2 Port 2 Quad Channel Nincs Raid Nem SATA III 4 Soros port Nincs Thunderbolt Nincs USB 2.0 8 USB 3.1 4 VGA integrált Nincs Wireless Nincs
