| Integrated fixed device |
Y |
| First supported version |
V200R021C11 |
| Installation Type |
Wall,Ceiling,T-Rail |
| Dimensions without packaging (H x W x D) [mm(in.)] |
Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] |
52 mm x 231 mm x 200 mm (2.05 in. x 9.09 in. x 7.87 in.) |
| Weight without packaging [kg(lb)] |
0.46 kg (1.01 lb) |
| Weight with packaging [kg(lb)] |
0.80 kg (1.76 lb) |
| CPU |
2-core, 1.0 GHz |
| Memory |
DDR3L 512 MB |
| Storage |
NAND Flash 256 MB |
| Console port |
None |
| Maximum power consumption [W] |
11.2 |
| Power supply mode |
DC adapter,PoE |
| Rated input voltage [V] |
12 V |
| Input voltage range [V] |
DC: 12 V ± 10% PoE: 802.3af |
| Service port surge protection [kV] |
PoE port: Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion C |
| Maximum number of physical ports on the entire device |

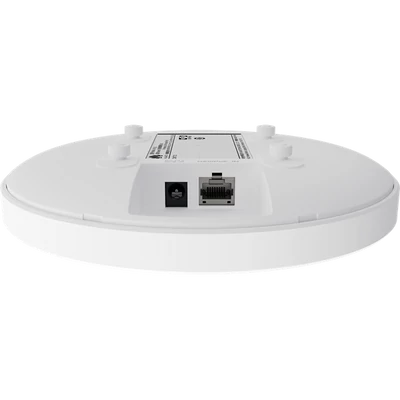

GE (RJ45) x 1, 10M/100M/1000M auto-sensing |
| Long-term operating temperature [°C(°F)] |
–10°C to +50°C (14°F to 122°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.) |
| Storage temperature [°C(°F)] |
–40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] |
5% RH to 95% RH |
| Long-term operating altitude [m(ft.)] |
–60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] |
53kPa - 106kPa ETSI 300 019-2-3 |
| Ground |
floating ground |
| BLE |
Not supported |
| Radio number |
2 |
| Operating frequency band |
2.4GHz,5GHz |
| MIMO spatial streams |
Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 |
| Wi-Fi standard |
2.4G: 802.11b/g/n/ax 5G: 802.11a/n/ac/ac Wave 2/ax |
| Radio interface |
Built-in smart antennas |
| Antenna gain |
2.4G: 4 dBi/chain (peak) 2 dBi (combined gain) 5G: 5 dBi/chain (peak value) 3 dBi (combined gain) |
| Maximum transmit power |
2.4G: 20 dBm/chain 23 dBm (combined power) 5G: 20 dBm/chain 23 dBm (combined power) |
| 3G/LTE filte (ACC) |
Not supported |
| MTBF [year] |
205.07 |
| MTTR [hour] |
0.5 |
| Frequency stability [ppm] |
+/-20 |
| 802.3bt power supply description |
No function is limited. |
| 802.3at power supply description |
No function is limited. |
| 802.3af power supply description |
No function is limited. |
| DC power supply description |
No function is limited. |
