Leírás és Paraméterek

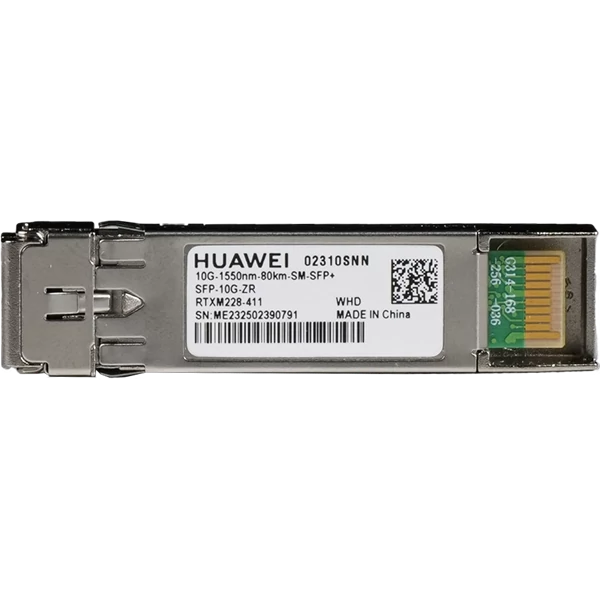

| Part Number | 02310SNN |
| Model | SFP-10G-ZR |
| Description | 10GBase-ZR Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,80km,LC) |
| Level-1 category | 10GE SFP+ Optical Modules |
| Module name | SFP-10G-ZR |
| Connector type | LC/DLC |
| Optical fiber type | SMF |
| Form factor | SFP+ |
| Transmission rate [bit/s] | 10G |
| Target transmission distance [km] | Single-mode fiber (G.652) (with diameter of 9 µm): 80 km |
| Application standard/Type | 10GBASE-ZR |
| Working case temperature [°C(°F)] | 0°C to 70°C (32°F to 158°F) |
| Type of the end face of the fiber ceramic ferrule | PC or UPC |
| DDM options | Supported |
| Center wavelength [nm] | 1550 |
| Overload power (AVG) [dbm] | -7 |
| Minimum Tx optical power (AVG) [dbm] | 0 |
| Maximum Tx optical power (AVG) [dbm] | 4 |
| Minimum extinction ratio [db] | 9 |
| Rx sensitivity (OMA) [dbm] | -24 |
| Gyártó | Huawei eKit |
