| First supported version |
V200R024C00 |

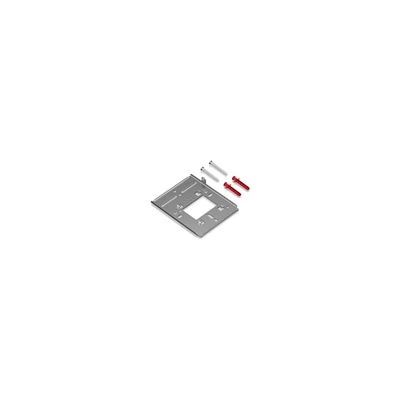

| Installation Type |
Desk,Wall,Ceiling,Junction Box |
| Dimensions without packaging (H x W x D) [mm(in.)] |
160 mm x 86 mm x 38 mm (6.30 in. x 3.39 in. x 1.50 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] |
187 mm x 108 mm x 68 mm (7.36 in. x 4.25 in. x 2.68 in.) |
| Weight without packaging [kg(lb)] |
0.23 kg (0.51 lb) |
| Weight with packaging [kg(lb)] |
0.42 kg (0.93 lb) |
| CPU |
2-core, 1.2 GHz |
| Memory |
DDR3: 256 MB |
| Console port |
None |
| Power supply mode |
PoE |
| Storage |
NAND Flash 256 MB |
| Rated input voltage [V] |
NA |
| Input voltage range [V] |
PoE: 802.3af |
| Service port surge protection |
PoE ports: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B Non-PoE ports: Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms, criterion B |
| Maximum number of physical ports on the entire device |
GE (RJ45) x 5, 10M/100M/1000M auto-sensing |
| Long-term operating temperature [°C(°F)] |
0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] |
–40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] |
5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] |
–60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] |
53kPa - 106kPa ETSI 300 019-2-3 |
| Ground |
floating ground |
| Radio number |
2 |
| MIMO spatial streams |
Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 |
| Wi-Fi standard |
2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax |
| Radio interface |
Built-in smart antennas |
| Antenna gain |
2.4G: 4 dBi/chain (peak value) 2 dBi (combined gain) 5G: 4 dBi/chain (peak value) 1 dBi (combined gain) |
| Maximum transmit power |
2.4G: 20 dBm/chain 23 dBm (combined power) 5G: 20 dBm/chain 23 dBm (combined power) |
| MTBF [year] |
289.18 |
| MTTR [hour] |
2 |
| Maximum power consumption [W] |
9.4 |
| Maximum heat dissipation [BTU/hour] |
32.07 |
| 802.3bt power supply description |
The negotiated power supply mode is 802.3af, and no function is restricted. |
| 802.3at power supply description |
The negotiated power supply mode is 802.3af, and no function is restricted. |
| 802.3af power supply description |
The negotiated power supply mode is 802.3af, and no function is restricted. |
| Operating frequency band |
2.4GHz,5GHz |
| Frequency stability [ppm] |
+/-20 |
