Feature
Product Description

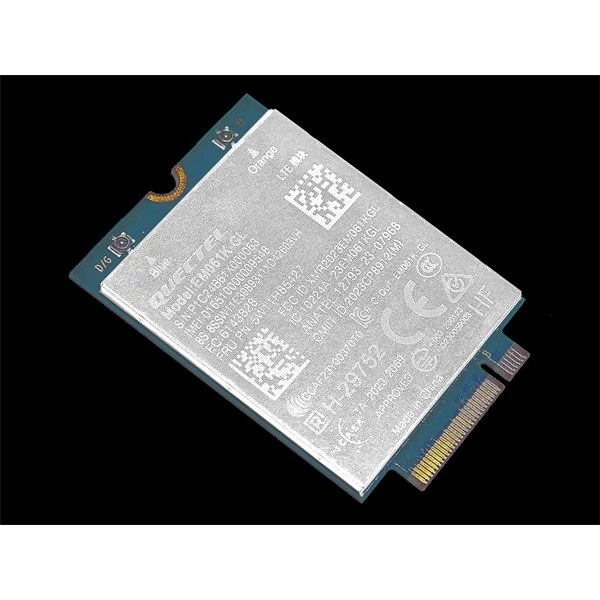

ThinkPad Quectel EM061K-GL LTE-A CAT6 M.2 WWAN Module is an LTE advanced category 6 module. This module supports a theoretical peak rate of 300 Mbps in the downlink and a theoretical peak data rate of 50Mbps in the uplink. Designed in M.2 form factor, the module facilitates customers' migration between different modules. In addition, it provides quicker, more accurate and more dependable positioning capability.
Top Features
- LTE-A CAT6 module with M.2 form factor
- Built-in eSIM (optional), DSSA
- Worldwide LTE-A and UMTS/ HSPA+ coverage
- USB 2.0 interface
- Dimension: 30mm*42mm*2.3mm
Tech Specs
| JAN | 4582763354157 |
| EAN | 0195892103172 |
| UPC | 195892103172 |
| Warranty Type | Customer Replaceable Unit (CRU) |
| Warranty Period | 1 Year |
| Other Physical Specifications | Interface: M.2 Key-B |
| Other Operating Environment | Extended operating temperature: –40? to +85? Storage temperature: –40? to +90? |
| Other Electrical Specifications | Antenna Connector: WWAN Antenna x 2 Protocol Stack: IPV4/IPV6 Firmware Update: USB |
| Maximum Relative Humidity (%) | 95% |
| Minimum Relative Humidity (%) | 5% |
| Maximum Operating Temperature | 75? |
| Minimum Operating Temperature | -25? |
| Packed Weight | 0.03kg |
| Packed Dimensions (L x D x H) | 53*144*177 |
| Package Type | Brown box |
| Hardware Requirements | USB2.0 M.2 Interface |
| Carriers | AT&T/ T-Mobile/ Verizon/ Vodafone/ EE/ Swisscom/ Deutsche Telekom/ Telefonica/ NTT Docomo/ KDDI/ Softbank/ CUCC |
| Agency Approvals | NCC*/ ANATEL*/ SRRC*/ NAL*/ CCC*/ CE*/ FCC*/ IC*/ RCM*/ PTCRB*/ GCF*/ UKCA*/ KC*/ JATE*/ TELEC*/ NBTC*/ IMDA*/ ICASA*IMDA*/ ICASA* |
| Shipment Group | WWAN module Warranty poster |
| Product Weight | 6.2g |
| Height | 2.3mm |
| Depth | 30mm |
| Length | 42mm |
| Voltage | 3.135––4.4 V, typ. 3.3 |
| Supported Band | LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 LTE-TDD:B34/B38/B39/B40/B41 WCDMA:B1/B2/B3/B4/B5/B6/B8/B19 |
| Supported OS | Windows 11 |
| Brand | ThinkPad |
Compatibility
Operating System
OS Independent
Compatible Machines
| Description | ID | Footnote |
| ThinkPad L13 Series-L13 2-in-1 G5 | 21LM | 124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna. |
| 21LN | 124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna. | |
| ThinkPad L13 Series-L13 Clam G5 | 21LB | 124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna. |
| 21LC | 124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna. | |
| ThinkPad L14 Series-L14 AMD G5 | 21L5 | 124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna. |
| 21L6 | 124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna. | |
| ThinkPad L14 Series-L14 G5 | 21L1 | 124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna. |
| 21L2 | 124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna. | |
| ThinkPad L16 Series-L16 AMD G1 | 21L7 | 124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna. |
| 21L8 | 124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna. | |
| ThinkPad L16 Series-L16 G1 | 21L3 | 124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna. |
| 21L4 | 124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna. | |
| ThinkPad T14 Series-T14 AMD G5 | 21MC | Compatible with Wireless WAN (WWAN) Ready ThinkPad models with 4G WWAN antenna |
| 21MD | Compatible with Wireless WAN (WWAN) Ready ThinkPad models with 4G WWAN antenna | |
| ThinkPad T14 Series-T14 G5 | 21ML | Compatible with Wireless WAN (WWAN) Ready ThinkPad models with 4G WWAN antenna |
| 21MM | Compatible with Wireless WAN (WWAN) Ready ThinkPad models with 4G WWAN antenna | |
| ThinkPad T14 Series-T14s G5 | 21LS | Compatible with Wireless WAN (WWAN) Ready ThinkPad models with 4G WWAN antenna |
| 21LT | Compatible with Wireless WAN (WWAN) Ready ThinkPad models with 4G WWAN antenna | |
| ThinkPad T16 Series-T16 G3 | 21MN | Compatible with Wireless WAN (WWAN) Ready ThinkPad models with 4G WWAN antenna |
| 21MQ | Compatible with Wireless WAN (WWAN) Ready ThinkPad models with 4G WWAN antenna | |
| ThinkPad X13 series-X13 2-in-1 G5 | 21LW | 124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna. |
| 21LX | 124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna. | |
| ThinkPad X13 series-X13 G5 | 21LU | 124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna. |
| 21LV | 124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna. |
