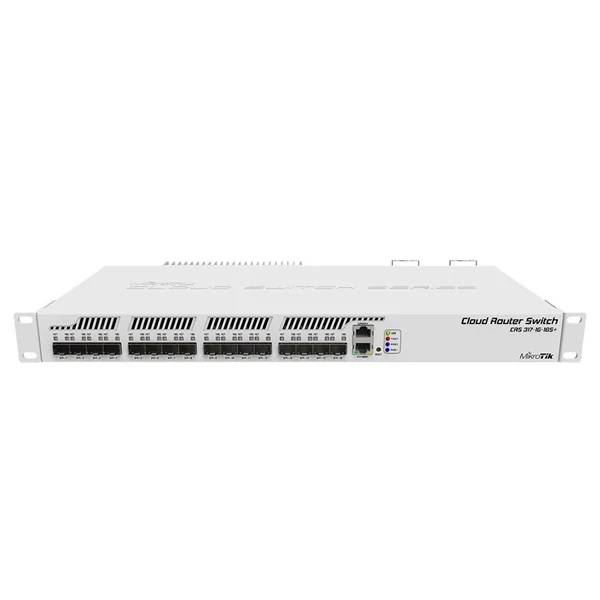

The new Cloud Router Switch 317-1G-16S+RM is a rack-mountable manageable switch with Layer3 features, it has 16 SFP+ ports for high performance 10GbE connectivity and a 1GbE copper port for management.
CRS317-1G-16S+RM is powered by a next generation switching chip, giving you wire speed performance for all sixteen 10GbE ports with any Ethernet frame size. New features such as hardware-based Spanning Tree Protocol and Link Aggregation (LACP) provide enhanced protection and true professional performance for your demanding network.
The unit has dual redundant power supplies and passive cooling case - for hot environments two redundant fans will automatically keep the system cool if needed.
|
Details
|
| Product code |
CRS317-1G-16S+RM |
| Architecture |
ARM 32bit |
| CPU |
98DX8216 |
| CPU core count |
2 |
| CPU nominal frequency |
800 MHz |
| Dimensions |
443 x 224 x 44 mm |
| License level |
6 |
| Operating System |
RouterOS or SwitchOS |
| Size of RAM |
1 GB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-20 to 60° C |
| |
|
Powering
| Details |
| Max Power consumption |
44W |
| Number of AC inputs |
2 |
| AC input range |
100-240 |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
1 |
Fiber
Peripherals
| Gyártó |
MIKROTIK |
| Menedzselhető |
Van |
| Menedzselhetőség |
Web |
| Port típusa |
10Gb SFP+ |
| Rack-be szerelhető |
Van |
| SFP port |
16 |
