Leírás és Paraméterek
Connector(s)
Connector A
1 - PCI Express x1 Slot
External Ports
2 - DB-9 (9 pin, D-Sub) Male
Environmental
Operating Temperature
0°C to 55°C (32°F to 131°F)
Storage Temperature
-40°C to 75°C (-40°F to 167°F)
Humidity
5 ~ 95% RH
Hardware
Ports
2
Interface
Serial
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Port Style
Integrated on Card
Industry Standards
PCI Express Version 2.0 x1
Chipset ID
ASIX - AX99100
ASIX - ZT3243LFEY
Indicators
LED Indicators
2 - Port 1. Flashes Green = Activity
Port 2. Flashes Green = Activity
Packaging Information
Package Quantity
1
Package Length
5.7 in [14.4 cm]
Package Width
8.1 in [20.7 cm]
Package Height
1.5 in [3.8 cm]
Shipping (Package) Weight
5.6 oz [160.0 g]
Performance
Serial Protocol
RS-232
Max Baud Rate
921.6 Kbps
Data Bits
5, 6, 7, 8, 9
FIFO
256 Bytes
Flow Control
Hardware and Software
Parity
Even, Odd, None, Space, and Mark
Physical Characteristics
Color
Yellow
Product Length
2.6 in [6.7 cm]
Product Width
2.6 in [6.6 cm]
Product Height
0.7 in [1.8 cm]
Weight of Product
5.6 oz [160.0 g]
Material
Steel
Software
OS Compatibility
Windows® 7, 8, 8.1, 10, 11
Windows Server® 2016, 2019
Linux 2.6.13 and older. LTS Versions Only
Special Notes / Requirements
System and Cable Requirements
Computer with an available PCI Express x1 or greater slot
What's in the Box
Included in Package

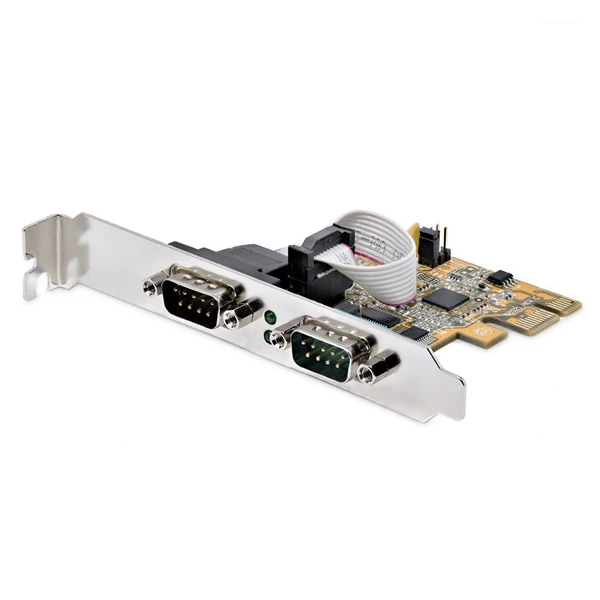

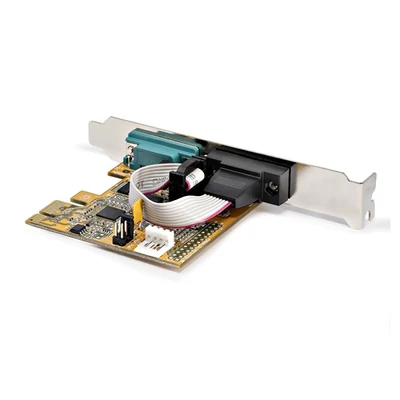

1 - Two-Port PCIe Serial Card
1 - Full Profile Bracket
2 - Low Profile Bracket
1 - Quick-Start Guide
| Gyártó | STARTECH |
