Leírás és Paraméterek
Connector(s)
Connector A
1 - USB 3.2 Type-C (Power Delivery + Data, 24 Pin, Gen 1, 5 Gbps)
1 - USB Type-A (9 pin, 5 Gbps)
Connector B
2 - HDMI
1 - USB Type-C (24 pin) USB Power Delivery Only
Environmental
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Humidity
20 to 80% RH
Hardware
Active or Passive Adapter
Active
AV Input
USB-C
USB 3.2 Gen 1 (5Gbps)
Ports
2
AV Output
HDMI
Audio
Yes
USB Pass-Through
No
Chipset ID
DisplayLink - DL6950
Packaging Information
Package Length
5.6 in [14.3 cm]
Package Width
6.9 in [17.4 cm]
Package Height
1.2 in [3.0 cm]
Shipping (Package) Weight
7.1 oz [200.0 g]
Package Quantity
1
Performance
Maximum Digital Resolutions
3840 x 2160 @ 60Hz
Supported Resolutions
3840×2160, 2560×1440, 1920×1080, 1600×900, 1280×720
Lower resolutions may be supported
Wide Screen Supported
Yes
Audio Specifications
HDMI - 5.1 Channel Audio
Physical Characteristics
Color
Gray
Product Length
4.4 in [11.3 cm]
Product Width
2.4 in [6.0 cm]
Product Height
0.6 in [1.5 cm]
Weight of Product
4.3 oz [121.0 g]
Material
Aluminum and Plastic
Cable Length
11.8 in [30 cm]
Power
Power Source
Bus Powered and Host USB-C Power Adapter
Laptop Charging via Power Delivery
90W
Power Consumption (In Watts)
10W
Software
OS Compatibility
Windows® 7, 8, 8.1, 10, 11
macOS 10.11 - 10.12, 10.14 - 10.15, 11.0, 12.0, 13.0, 14.0
Ubuntu 18.04, 20.04
ChromeOS™ v55+
Special Notes / Requirements
Note
USB Power Delivery is only available when a USB-C power adapter is connected to the PD pass-through port
USB-C Power Delivery is not available if using the USB-C to USB-A dongle
What's in the Box
Included in Package

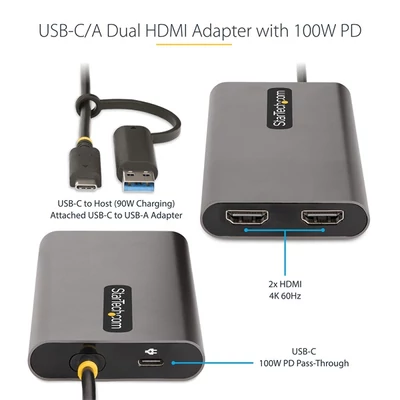

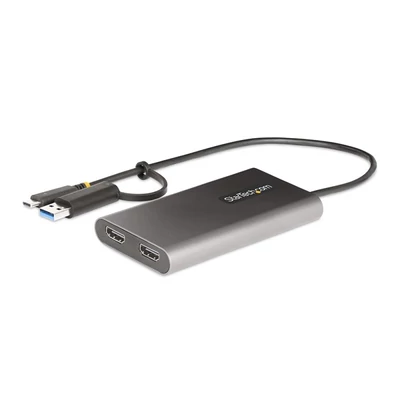

1 - USB-C/USB-A to HDMI Adapter
1 - Quick-Start Guide
| Csatlakozók | HDMI, USB, USB-C |
| Csatoló | USB-C |
| Gyártó | STARTECH |
| Portok száma | 3 |
