Leírás és Paraméterek
Connector(s)
Connector Type(s)
1 - PCI Express x2
Internal Ports
10 - SATA (7 pin, Data)
Environmental
Operating Temperature
0°C to 85°C (32°F to 185°F)
Storage Temperature
-25°C to 85°C (-13°F to 185°F)
Humidity
20~80% RH
Hardware
Ports
10
Interface
SATA
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Industry Standards
Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps)
PCI Express Base Specification Revision 2.0

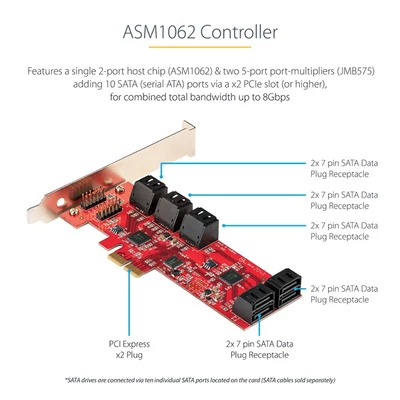

Chipset ID
ASMedia - ASM1062
Packaging Information
Shipping (Package) Weight
4.8 oz [135.0 g]
Package Height
1.2 in [3.0 cm]
Package Length
6.9 in [17.5 cm]
Package Width
5.6 in [14.2 cm]
Package Quantity
1
Performance
Maximum Data Transfer Rate
6 Gbps
TRIM Support
Yes
4Kn Support
Yes
S.M.A.R.T. Support
Yes
Type and Rate
SATA III (6 Gbps)
Port Multiplier
Yes
Bootable
Yes
Hardware Raid Supported
No
ATAPI Support
Yes
Physical Characteristics
Weight of Product
2.1 oz [59.0 g]
Product Height
0.7 in [1.8 cm]
Product Length
4.7 in [12.0 cm]
Product Width
2.1 in [5.4 cm]
Software
OS Compatibility
Windows® 7, 8, 8.1, 10, 11
Windows Server® 2012 R2, 2016, 2019, 2022
macOS® 10.10 to 14
Linux 2.6.32 and up - LTS Versions only
What's in the Box
Included in Package
1 - PCIe SATA Card

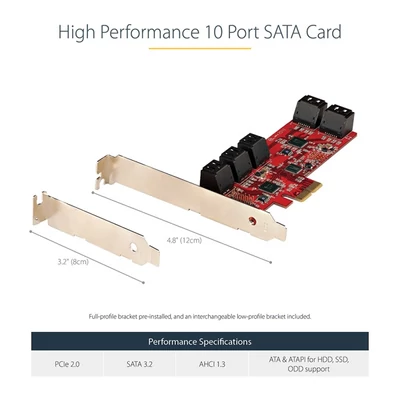

1 - Full-Profile Bracket (Installed)
1 - Low-Profile Bracket
1 - Quick-Start Guide
| Csatlakozók | PCI-e |
| Gyártó | STARTECH |
