Leírás és Paraméterek
Connector(s)
Connector Type(s)
1 - PCI Express x1
Internal Ports
2 - SATA (7 pin, Data)
Environmental
Operating Temperature
0°C to 85°C (32°F to 185°F)
Storage Temperature
-25°C to 85°C (-13°F to 185°F)
Humidity
20~80% RH
Hardware
Ports
2
Interface
SATA
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Industry Standards
Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps)
PCI Express Base Specification Revision 2.0
Chipset ID

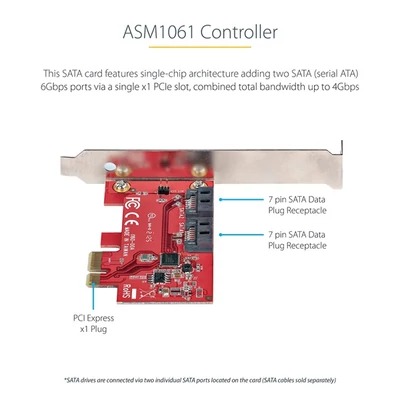

ASMedia - ASM1061
Indicators
LED Indicators
2 - Header pins, for drive activity
Packaging Information
Package Height
1.2 in [3.0 cm]
Package Length
6.9 in [17.5 cm]
Shipping (Package) Weight
3.8 oz [107.0 g]
Package Width
5.6 in [14.2 cm]
Package Quantity
1
Performance
Maximum Data Transfer Rate
6 Gbps
TRIM Support
Yes
4Kn Support
Yes
S.M.A.R.T. Support
Yes
Type and Rate
SATA III (6 Gbps)
Port Multiplier
Yes
Bootable
Yes
Hardware Raid Supported
No
ATAPI Support
Yes
Physical Characteristics
Color
Red
Product Height
4.8 in [12.1 cm]
Product Length
3.0 in [7.7 cm]
Weight of Product
1.2 oz [33.0 g]
Product Width
0.7 in [1.8 cm]
Software
OS Compatibility
Windows® XP, Vista 7, 8, 8.1, 10, 11
Windows Server® 2012 R2, 2016, 2019, 2022
macOS® 10.6.8 to 14.0
Linux 2.6.32 and up - LTS Versions only
What's in the Box
Included in Package
1 - PCIe SATA Card
1 - Full-Profile Bracket (Installed)
1 - Low-Profile Bracket
1 - Quick-Start Guide
| Gyártó | STARTECH |
