Leírás és Paraméterek
Connector(s)
Connector A
1 - USB-C (24 pin) DisplayPort Alt Mode
1 - USB Type-C (24 pin) USB Power Delivery Only
Connector B
1 - HDMI (19 pin)
1 - 15 pin High Density D-Sub (VGA) Female
1 - 3.5mm Stereo Female 3 pos
Environmental
Operating Temperature
0°C to 45°C (32°F to 113°F)
Storage Temperature
-10°C to 70°C (14°F to 158°F)
Humidity
10% - 85% RH
Hardware
Active or Passive Adapter
Active
AV Input
USB-C
AV Output
VGA
HDMI
Chipset ID
VIA/VLI - VL103-Q4
ITE - IT6564FN
Packaging Information
Package Height
1.2 in [3.0 cm]
Package Length
5.7 in [14.5 cm]
Shipping (Package) Weight
3.3 oz [94.0 g]
Package Width
6.9 in [17.5 cm]
Package Quantity
1
Performance
Video Revision
HDMI 2.0b
Maximum Analog Resolutions
1920 x 1200 @ 60 Hz (VGA)
Maximum Digital Resolutions
3840 X 2160 @ 60 Hz (HDMI)
Supported Resolutions
Maximum HDMI output: 3840 X 2160 @ 60Hz
Maximum VGA output: 1920 x 1200 @ 60Hz
Lower resolutions and refresh rates may also be supported
Wide Screen Supported
Yes
Audio Specifications
HDMI - 7.1 Channel Audio
Analog Stereo - 2 Channel Audio
General Specifications
Maximum Cable Distance To HDMI Display: 7m [22.9ft]
Maximum Cable Distance To VGA Display: 30m [98.4ft]
Physical Characteristics
Color
Gray
Product Height
0.6 in [1.4 cm]
Product Length
1.8 in [4.5 cm]
Weight of Product
1.4 oz [41.0 g]
Product Width
2.4 in [6.0 cm]
Power
Power Source
Bus Powered and Host USB-C Power Adapter
Software
OS Compatibility
No Drivers or Software Required
Special Notes / Requirements
Note
This adapter does not support MST or dual-extended displays.
The 3.5mm audio output will not be active unless a display is connected to the product.
Support for dual-mirrored displays using VGA and HDMI
What's in the Box
Included in Package

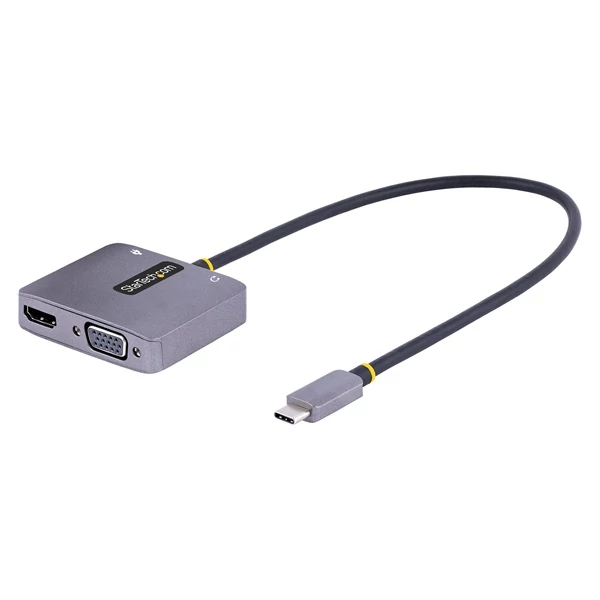

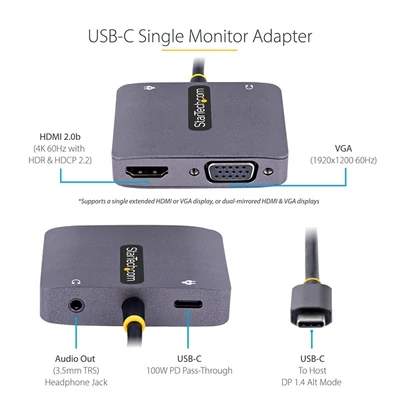

1 - USB-C to HDMI and VGA Adapter
| Csatlakozók | VGA, HDMI, USB-C, 3.5mm |
| Csatoló | USB-C |
| Gyártó | STARTECH |
| Portok száma | 4 |
