Leírás és Paraméterek
| HARDWARE FEATURES | |
|---|---|
| Interface | 8× XGS-PON & GPON Combo Ports (SFP+) 2× 40G QSFP+ Ports 2× 10G SFP+ Ports 1× RJ45 Management Port 1× RJ45 Console Port 1× Alarm Port |
| Button | Reset Button |
| Power Supply | Dual Power Supplies: 2 AC, 2 DC or AC+DC, AC: 100V~240V, 50/60Hz DC: -38.4V~-72V |
| Power Consumption | Max. 109.2W |
| Dimensions ( W x D x H ) | 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) |
| SOFTWARE FEATURES | |
|---|---|
| Security | ACL 802.1x Authentication ARP Inspection IP Source Guard |
| DHCP | DHCP Server DHCP Relay |
| OMCI | Standard OMCI Management Supported |
| ONU Authentication | ONU Auto Authentication |
| ONU Security | Rouge ONU Detection and Isolation |
| Multi-Service | Multi-Service Traffic Identify and Rate Limit |
| QoS | IEEE 802.1p/DSCP QoS Voice VLAN Auto VoIP |
| Routing | Static Routing |
| Mulitcast | IGMP Snooping MLD Snooping |
| Centralized Management | Large-Scale Devices Management OLT Batch Configure, Upgrade, Reboot Multi-Site Management Intelligent Network Monitoring Real-time Network Overview |
| Combo PON Port Attribute | |
|---|---|
| Max. Splitting Ratio | 1:128 for GPON, 1:256 for XGS-PON |
| Transmission distance | 20 km |
| Data rate | GPON Downstream: 2.5 Gbps, Upstream: 1.25 Gbps XGS-PON Downstream: 9.953 Gbps, Upstream: 9.953 Gbps |
| Wavelength | XGS-PON: Tx: 1577 nm Rx: 1270 nm GPON: Tx: 1490 nm Rx: 1310 nm |
| OTHERS | |
|---|---|
| Certification | CE,FCC |

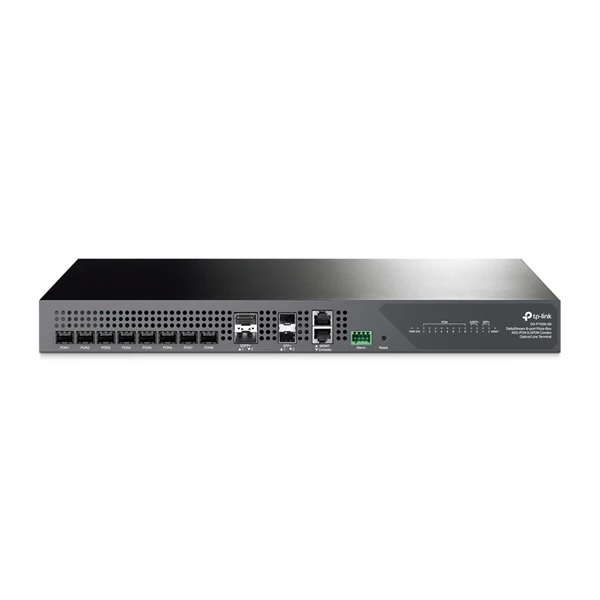

| Package Contents | Optical Line Terminal DS-P7500-8 AC Power Cord Console Cable Mouting Brackets, Screws and Rubber Feet Installation Guide |
| Environment | Operating Temperature: 0?–50? (32?–122?) Storage Temperature: -40?–70? (-40?–158?) Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing |
| Gyártó | TP-LINK |
| Menedzselhető | Van |
| Menedzselhetőség | Teljes |
| Portok száma | 12 |
| Rack-be szerelhető | Van |
| SFP port | 12 |
| Switch típus | Modular |
