Leírás és Paraméterek
-

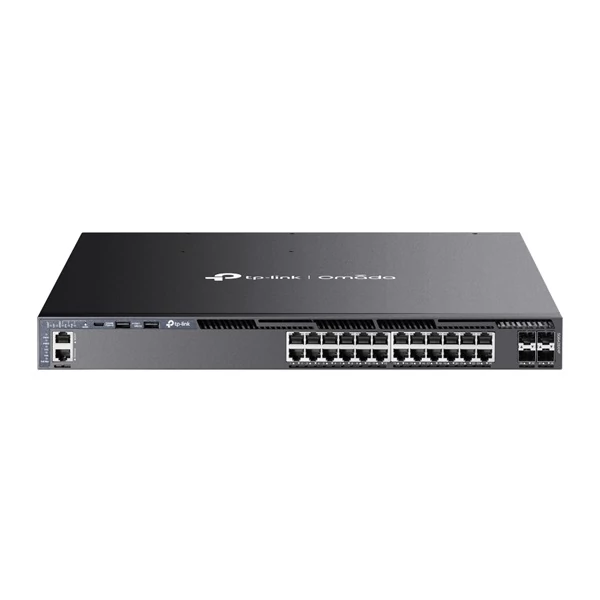

HARDVER JELLEMZŐK Csatlakozások • 24× 10/100/1000 Mbps PoE+ RJ45 Ports
• 4× 10G SFP+ Slots
• 2× USB 2.0 Ports
• 1× RJ45 Console Port
• 1× USB Type-C Console Port

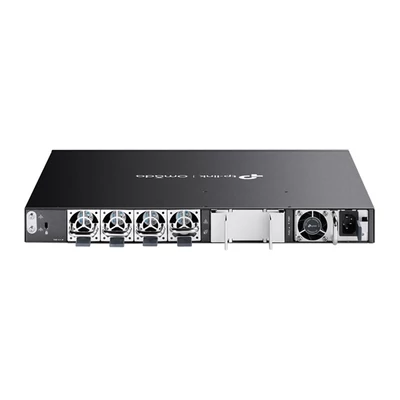

• 1× RJ45 Management PortVentilátorok száma Four Field-replaceable and Hot-swappable Fans Hálózati tápegység Two Field-replaceable and Hot-swappable Power Supply Modules** (100–240 VAC, 50/60 Hz)
**Shipping with one PSM500-AC module by default, and another field-replaceable redundant power supply requires purchasing separately.PoE portok (RJ45) • Standard: 802.3at/af compliant
• PoE+ Ports: 24 Ports, up to 30 W per port
• PoE Power Budget: up to 720 W*
*The total PoE budget varies with the power supply modules.Méretek (Sz x Mé x Ma) 17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm) Felszerelés Rackmountable Max. áramfelvétel • 42.9 W (110 V/60 Hz) (With no PD connected)
• 916.6 W (110 V/60 Hz) (With 720 W PD connected and powered by 2× PSM500-AC)Max Heat Dissipation • 146.29 BTU/hr (110 V/60 Hz) (With no PD connected)
• 3,125.61 BTU/hr (110 V/60 Hz) (With 720W PD connected and powered by 2× PSM500-AC)MŰKÖDÉSI JELLEMZŐK Switching teljesítmény 128 Gbps per Unit Stacking • Stacking Number: 4
• Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)
• Stack Bandwidth: 20 Gbps Per Port (Full-Duplex)Csomagtovábbítási sebesség 95.2 Mpps Fizikai (MAC) cím tábla 32 K Csomag puffer memória 3 MB Jumbo Frame 9 KB SZOFTVER JELLEMZŐK QoS (szolgáltatás minősége) • Class of Service
- 8 Queues of Priority
- Port Priority
- IEEE 802.1p Priority
- DSCP Priority
- Queue Min-Bandwidth
- Schedule Mode (SP, WRR, SP+WRR)
• Bandwidth Control
- Rate Limit
- Storm Control
• Voice VLAN
• User-Defined OUI
• Smoother Performance
• Action for Flows
- QoS remark (802.1P Remark, DSCP Remark)L3 jellemzők • IP Interfaces:
- IPv4: Max 256, IPv6: Max 256
• Static Routing
- Max 1,024, IPv6: Max 512
• Host Route Table: Max 6,100 entries
• RIP: Version v1/v2, Max 8,190
• OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097
• VRRP: Version v2/v3, Max 64 groups
• ECMP: 256 entries, max 32 ECMP Nexthops per Destination
• Static ARP: 512 static entries
• Dynamic ARP: 7,680 dynamic entries
• Proxy ARP
• DHCP Server:
- Max 8K IP Pools
- Max 1,000 Manual Binding Entries
• DHCP Relay:
- Relayed Interface
- Relayed VLANL2 és L2+ jellemzők • Link Aggregation
• Spanning Tree Protocol
• Port-based and VLAN-based Loopback Detection
• 802.3x Flow Control
• Supports 2,048 IGMP groups
• ERPS
• Mirroring
• RSPAN
• MAC Address Table
• PIM-DM (IPv4)
• Multicast
- IGMP Snooping
- MLD Snooping
- L2 Multicast Table
- Fast Leave
- Multicast VLAN Registration (MVR)
- Static Multicast IP
- Multicast FilteringTovábbi jellemzők • Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Intelligent Network Monitoring†
• Abnormal Event Warnings†
• Unified Configuration†
• Reboot Schedule†
ISP Features:
• 802.3ah Ethernet Link OAM
• L2PT (Layer 2 Protocol Tunneling)
• Device Link Detect Protocol (DLDP)
• DDM
• sFlowVLAN • Max 4K VLAN Group (802.1q VLAN)
• 802.1Q Tagged VLAN
• MAC VLAN Entries: 200
• Multicast VLAN
• Management VLAN
• VLAN VPN (QinQ): Max 256 entries
• GVRP
• Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
• VLAN VPN
• Voice VLAN
• Private VLANBiztonság • Port Isolation
• CPU-Defend
• ARP Inspection (Dynamic ARP Inspection)
• DoS Defend
• IP-MAC-Port Binding
-1,024 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
• IPv6-MAC
-Port Binding
-1,024 Entries
- DHCPv6 Snooping
- ND Detection
- ND Snooping
- IPv6 Source Guard
• DHCP Filter
• Static/Dynamic Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unknown-unicast Storm Control
- kbps/ratio control mode
• 802.1X
- Port base authentication
- Mac base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- RADIUS authentication and accountability support
• AAA (including TACACS+)
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv2
• IP/Port/MAC-based access controlVEZÉRLÉS Omada App Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software ControllerCloud Access Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Zero-Touch Provisioning Yes. Requiring the use of the Omada Cloud-Based Controller. Management Features • Web-based GUI
• Command Line Interface (CLI) through console port, telnet
• SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP Auto Install
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• Password Recovery
• SNTP
• System Log
• EEEEGYÉB JELLEMZŐK Csomagolás tartalma • SG6428XHP Switch
• Power Cord
• RJ45 Console Cable
• Quick Installation Guide
• Rackmount Kit
• Rubber FeetRendszerkövetelmény Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. Környezet • Operating Temperature: 0–45 ? (32–113 ?);
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
| Gyártó | TP-LINK |
| Menedzselhető | Van |
| Menedzselhetőség | Teljes |
| Port típusa | 10Gb SFP+ |
| Portok száma | 28 |
| Rack-be szerelhető | Van |
| SFP port | 4 |
| Switch típus | Modular |
