Leírás és Paraméterek
| HARDWARE FEATURES | |
|---|---|
| Dimensions ( W x D x H ) | 3.09 × 4.8 × 0.85 in (78.5×120.8×21.5mm) |
| Antenna | 2× High-Performance Tri-Band Antennas |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax/be |
| WLAN Signal Rate | 6 GHz: 11be: Up to 5760 Mbps(dynamic) 11ax: Up t0 2402Mbps(dynamic) 5 GHz: 11be: Up to 2880 Mbps(dynamic) 11ax: Up to 2402 Mbps(dynamic) 11ac: Up to 1732 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz: 11be: Up to 688 Mbps(dynamic) 11ax: Up to 574 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) |
| WLAN Reception Sensitivity | 6 GHz: 11ax HE20 MCS0: -94 dBm 11be EHT320 MCS13: -44dBm 5 GHz: 11ac VHT20 MCS0: -94 dBm 11be EHT160 MCS13: -48dBm 2.4 GHz: 11n HT20 MSC0: -95 dBm 11be EHT40 MSC13: -56dBm |
| WLAN Transmit Power | 2.4 GHz: 24dBm(FCC) (EIRP)/ 20dBm(CE) (EIRP) 5 GHz: 24dBm(FCC) (EIRP) /20dBm(CE) (EIRP) 6 GHz: 20dBm(FCC) (EIRP) /20dBm(CE) (EIRP) |
| WLAN Modes | Infrastructure mode |
| Wireless Security | WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK |
| OTHERS | |
|---|---|
| Certification | FCC/CE/IC/NCC/JRF/VCCI/BSMI |

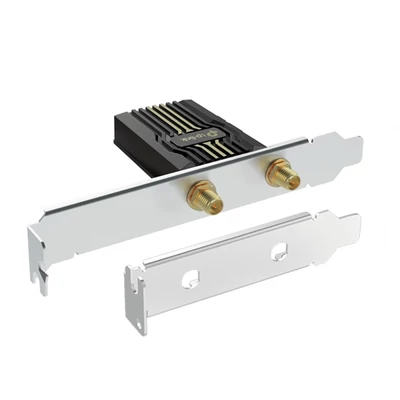

| Package Content | Archer TBE552E 2x High-Performance Antennas Low-Profile Bracket Bluetooth Header Cable Quick Installation Guide Resource CD |
| System Requirements | Supported operating system: Windows 11(64-bit) only |
| Environment | Operating Temperature: 0?~40? (32? ~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Accessories Specifications | Bluetooth Header Cable Length: 0.3 m |
| Csatlakozók | PCI-e, Bluetooth |
| Csatoló | PCI-e |
| Frekvencia | 2.4 GHz és 5 GHz és 6 GHz |
| Gyártó | TP-LINK |
| Szabvány | 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax, 802.11be |
