Leírás és Paraméterek
| Mechanical | |
|---|---|
| Dimensions | 66 x 202 x 32 mm (2.60 x 7.96 x 1.27"") |
| Weight | Without stand: 223 g (7.86 oz) With stand: 336 g (11.85 oz) |
| Enclosure material | Polycarbonate |
| Mount materials | Stand: aluminum Wall mount: polycarbonate |
| Hardware | |
| Processor | 74 Kc MIPS Processor at 775 MHz |
| Memory information | 128 MB DDR2 |
| Management interface | Ethernet |

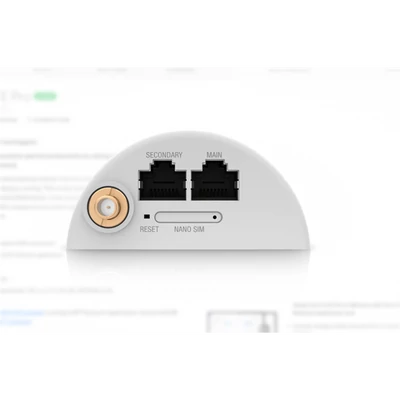

| Networking interface | (2) 10/100/1000 MbE RJ45 ports WP7607 LTE |
| SIM | Nano-SIM |
| LTE bands | CAT4, B1/3/7/8/20/28 |
| LCM display | 1.54" screen |
| Power method | PoE+, Passive PoE (48V) |
| Power Supply | UniFi PoE switch 48V, 0.5A PoE adapter |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 8.5W |
| Max. TX power | 19 dBm |
| MIMO | U-LTE 2 x 2 Category 4 LTE radio |
| Throughput speeds | 150 Mbps |
| Antenna gain LTE B1 B3 B7 B8 B20 B28 |
2 dBi 1.5 dBi 2 dBi 3.5 dBi 2 dBi 2 dBi |
| Button | Factory reset |

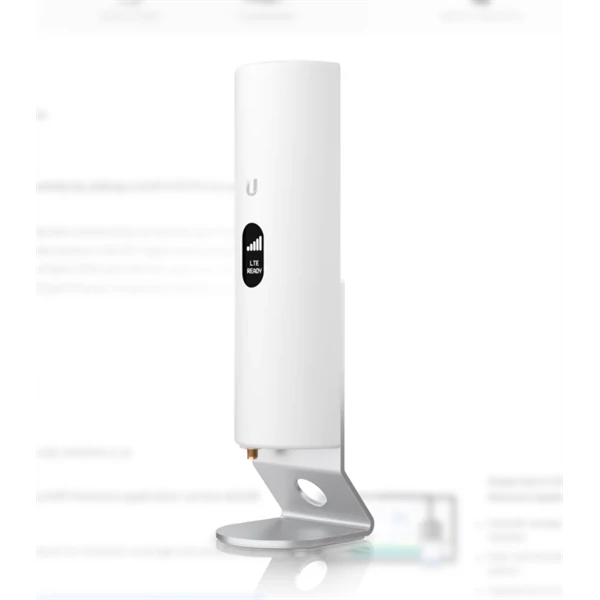

| Mounting | Wall mount, foot stand (included) |
| ESD/EMP protection | Air/Contact: ± 24 kV |
| Operating temperature | -10 to 60° C (-14 to 140° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Gyártó | UBIQUITI |
| Portok száma | 2 |
