Leírás és Paraméterek
| Mechanical | |
|---|---|

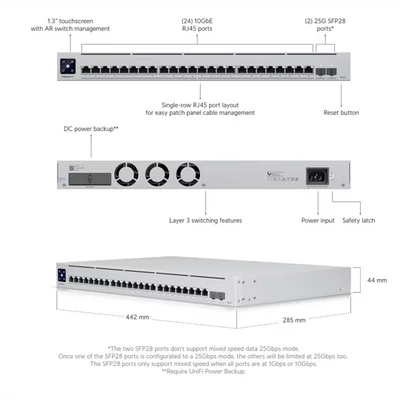

| Dimensions | 442 x 285 x 44 mm (17.4 x 11.2 x 1.7") |
| Weight | Without mounting brackets: 4.5 kg (9.9 lb) With mounting brackets: 4.6 kg (11 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (24) 1/2.5/5/10 GbE ports (2) 25G SFP28 ports* *Don't support mixed speed at 25 Gbps mode. Once one of the ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. Supports mixed speed when all ports are at 1 or 10 Gbps. |
| Total non-blocking throughput | 290 Gbps |
| Switching capacity | 580 Gbps |
| Forwarding rate | 431.52 Mpps |
| Power method | (1) Universal input, 100—240V AC, 2A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 8.7A |
| Power supply | AC/DC, internal, 100W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 100W |
| Services | SMB Layer 3 GbE switch |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| LCM display | (1) 1.3" color touchscreen |
| Button | Factory reset |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC |
| Layer 3 features | DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks |
| LEDs | |
| System | Status |
| Ethernet | Link/activity |
| Application Requirements | |
| UniFi Network | Version 6.1.67 and later |
| Gyártó | UBIQUITI |
| Menedzselhető | Van |
| Menedzselhetőség | Web |
| Portok száma | 24 |
| Rack-be szerelhető | Van |
| SFP port | 2 |
