Leírás és Paraméterek
GXT5-5000IRT5UXLE (vertiv.com)
| GENERAL INFORMATION | |
|---|---|
|
Manufacturer
|
Vertiv
|
|
Manufacturer Part Number
|
GXT5-5000IRT5UXLE
|
|
Manufacturer Website Address
|
|
|
Brand Name
|
Liebert
|
|
Product Series
|
GXT5
|
|
Product Name
|

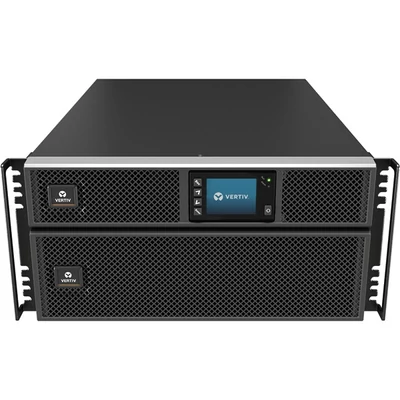

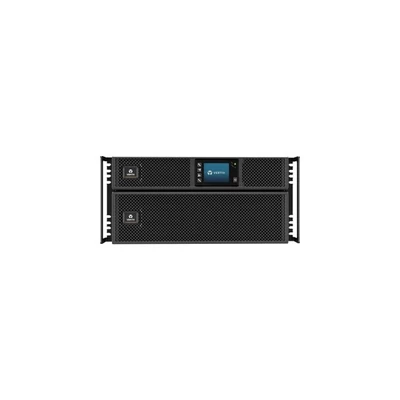

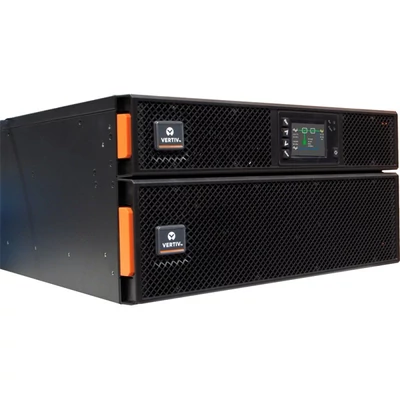

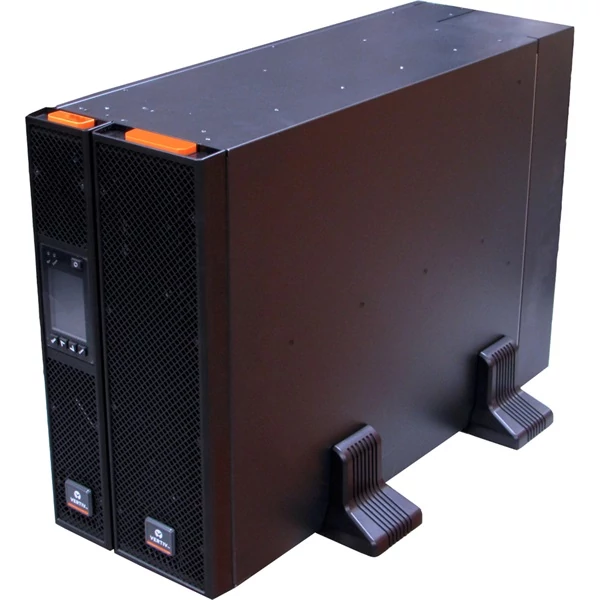

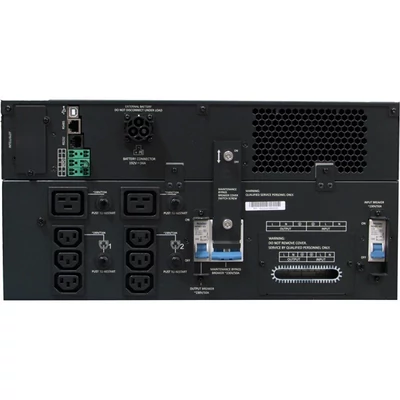

GXT5 5KVA / 5kW 230V Rack/Tower UPS
|
|
Product Type
|
Dual Conversion Online UPS
|
| TECHNICAL INFORMATION | |
|
Plug/Connector Type
|
Hardwired
|
|
Receptacle Type
|
|
|
Receptacle Detail
|
|
|
Overload Protection
|
Yes
|
|
Transfer Time
|
0 ns
|
|
Phase
|
Single Phase
|
|
Application/Usage
|
Network
|
| POWER DESCRIPTION | |
|
Load Capacity
|
5 kVA/5 kW
|
|
Input Voltage
|
230 V AC
|
|
Input Voltage Range
|
176 V AC 288 V AC
|
|
Output Voltage
|
|
|
Input Frequency
|
60 Hz
|
|
Output Frequency
|
60 Hz
|
|
Waveform Type
|
Pure Sine Wave
|
| CONTROLS/INDICATORS | |
|
Status Indicators
|
|
| INTERFACES/PORTS | |
|
Serial Port
|
Yes
|
|
EPO Port
|
Yes
|
|
USB (HID Compliant) Port
|
Yes
|
| BATTERY INFORMATION | |
|
DC System Voltage
|
12 V DC
|
|
Battery Characteristics
|
Valve-regulated, Non-spillable
|
|
Battery Chemistry
|
Sealed Lead Acid (VRLA)
|
|
Battery Capacity
|
9000 mAh
|
|
Backup/Run Time (Full Load)
|
7 Minute
|
|
Backup/Run Time (Half Load)
|
18.50 Minute
|
|
Battery Life
|
5 Year
|
|
Typical Battery Recharge Time
|
5 Hour
|
|
Hot Swappable
|
Yes
|
| ENVIRONMENTAL CONDITIONS | |
|
Maximum Operating Temperature
|
40°C
|
|
Storage Temperature
|
-15°C - 40°C
|
| Áthidalási idő | 7 |
| Gyártó | VERTIV |
| Kapcsolási mód | Online |
| Kommunikáció | USB |
| Rack-be szerelhető | Van |
| Teljesítmény VA | 5000 |
