Leírás és Paraméterek

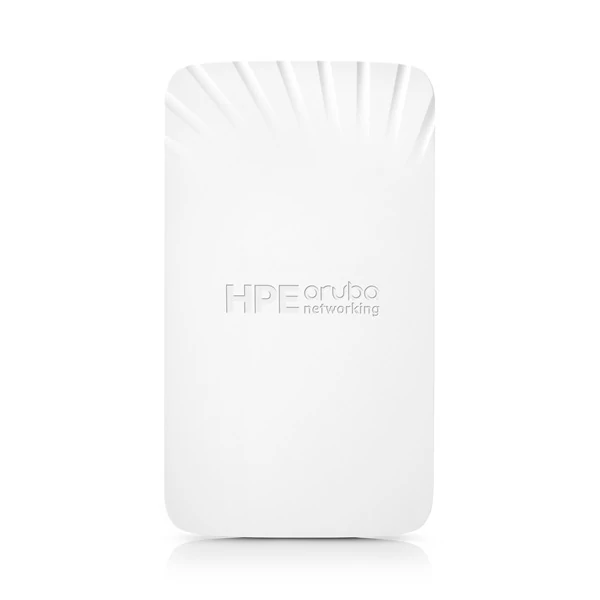

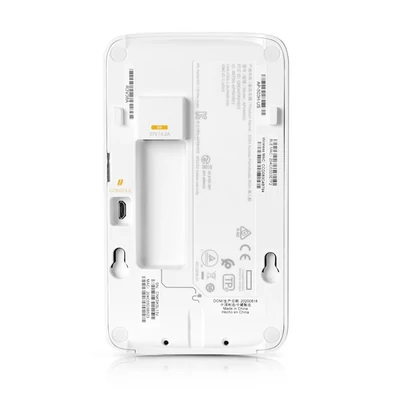

| Product | AP-503H |
| Part Number | R3V44A R3V42A R3V40A R3V36A R3V38A R3V45A R3V43A R3V41A R3V37A R3V39A |
| Description | Indoor, dual radio, 5GHz 802.11ax 2x2 MIMO and 2.4GHz 802.11ax 2x2 MIMO |
| Product Type | Access Point |
| Ports | 1x 10/100/1000, 2x 10/100/1000 |
| Number of Radios | 2 |
| Wi-Fi Alliance Certification | •Wi-Fi CERTIFIED a, b, g, n, ac •Wi-Fi CERTIFIED 6 (ax) •WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open ( OWE) •WMM, WMM-PS, Wi-Fi Vantage, Wi-Fi Agile Multiband •Passpoint (release 2) •Bluetooth SIG •Ethernet |
| Performance | |
| Memory and Processor | N/A |
| MAC Address Table Size | N/A |
| Electrical Characteristics | |
| Maximum Heat Dissipation | N/A |
| Maximum Power Rating | DC: 14W 802.3af: 10W |
| Power Inputs | DC: 14W 802.3af: 10W |
| Antenna Connector | N/A |
| Antenna | Two integrated semi-directional antennas for 2x2 MIMO with peak single antenna gain of 2.5dBi in 2.4GHz and 5.6dBi in 5GHz. Built-in antennas are optimized for vertical wall or desk mounted orientation of the AP |
| Number of Internal Antennas | Two integrated semi-directional antennas for 2x2 MIMO with peak single antenna gain of 2.5dBi in 2.4GHz and 5.6dBi in 5GHz. Built-in antennas are optimized for vertical wall or desk mounted orientation of the AP |
| Number of External Antennas | N/A |
| Notes | N/A |
| Physical Characteristics | |
| Dimensions | 86mm (W) x 40mm (D) x 150mm (H) |
| Weight | 290g |
| Additional Details | |
| MIMO | 2x2 |
| Spatial Streams | 2 5GHz radio: Two spatial stream (SU) MIMO for up to 1.2Gbps wireless data rate (HE80) 2GHz radio: Two spatial stream (SU) MIMO for up to 287Mbps wireless data rate (HE20) Note: HE40 operation is supported in 2.4GHz, but uncommon and not recommended |
| Notes | N/A |
| Gyártó | HP HEWLETT PACKARD |
