Leírás és Paraméterek
Connector(s)
Connector A
1 - DisplayPort (20 pin)
Connector B
1 - HDMI (19 pin)
Environmental
Operating Temperature
0°C to 60°C (32°F to 140°F)
Storage Temperature
-10°C to 70°C (14°F to 158°F)
Humidity
10%~85%RH
Hardware
Active or Passive Adapter
Passive
AV Input
DisplayPort - 1.2
Ports
1
AV Output
HDMI - 1.4
Audio
Yes
Industry Standards
DPCP (DisplayPort Content Protection)
HDCP (High Definition Content Protection)
DisplayPort 1.2
HDMI 1.4
Packaging Information
Shipping (Package) Weight
16.0 g [0.6 oz]
Package Length
12.5 cm [4.9 in]
Package Width
9.0 cm [3.5 in]
Package Height
1.1 cm [0.4 in]
Performance
Audio Specifications
HDMI - 7.1 Channel Audio
Maximum Cable Distance To Display
15.2 m [49.9 ft]
Maximum Digital Resolutions
3840x2160 30Hz (4K)
Supported Resolutions
3840x2160 30Hz (4K)
1920x1200
1920x1080 60Hz (1080p)
1280x720 (720p)
Wide Screen Supported
Yes
MTBF
1,482,115 hours
Physical Characteristics
Weight of Product
13.0 g [0.5 oz]
Color
Black
Product Length
6.4 cm [2.5 in]
Product Width
2.1 cm [0.8 in]
Product Height
1.1 cm [0.4 in]
Special Notes / Requirements
System and Cable Requirements
DP++ port (DisplayPort ++) required on video card or video source (DVI and HDMI pass-through must be supported)
What's in the Box
Included in Package

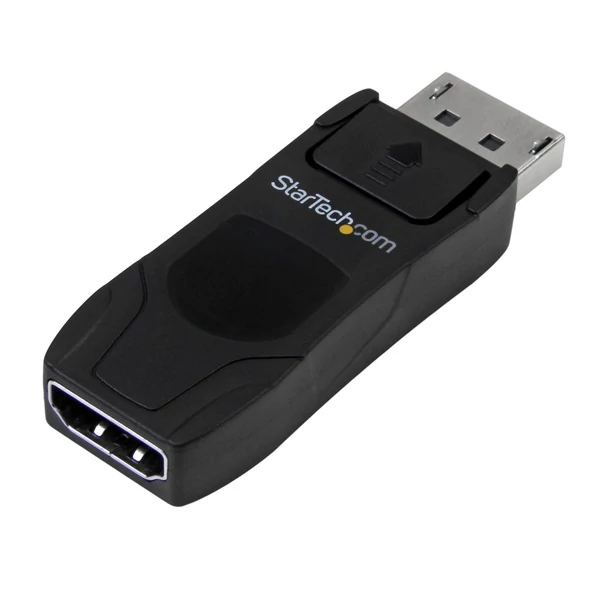

1 - DisplayPort to HDMI adapter
| Gyártó | STARTECH |
