Leírás és Paraméterek
Connector(s)
Console Interface(s)
1 - DisplayPort
2 - USB 2.0 Type-A (4 pin, 480Mbps)
2 - 3.5mm Stereo Female 3 pos
Host Connectors
1 - USB-C (DP Alt-Mode)
2 - 3.5mm Stereo Male 4 pos
1 - DisplayPort
1 - USB 2.0 Type-A (4 pin, 480Mbps)
Environmental
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Humidity
0% ~ 90% RH (non-condensing)
Hardware
Audio
Yes
KVM Ports
2
PC Interface
USB & USB-C
PC Video Type
DisplayPort
Number of Monitors Supported
1
Rack-Mountable
No
Cables Included
Yes
Chipset ID
SN8P2202SG
Daisy-Chain
No
Indicators
LED Indicators
1 - Solid Green: Selected PC is connected
1 - Blinking Green: Selected PC is not detected
Packaging Information
Package Quantity
1
Package Length
21,0 cm [8,3 in]
Package Width
16,0 cm [6,3 in]
Package Height
6,0 cm [2,4 in]
Shipping (Package) Weight
450,0 g [15,9 oz]
Performance
On-Screen Display
No
Video Revision
DisplayPort 1.2
IP Control
No
Hot-Key Selection
Yes
Maximum Data Transfer Rate
480Mbps (USB 2.0)
Supported Resolutions
4096x2160 @60Hz
3840x2160 @60Hz
5120x1440 @60Hz
3440x1440 @60Hz
2560x1440 @60Hz
2560x1080 @60Hz
1920x1200 @60Hz
1920x1080 @60Hz
Other resolutions may be supported
Wide Screen Supported
Yes
Audio Specifications
DisplayPort - 2 Channel Audio
Analog Stereo - 2 Channel Audio
Auto Scan
10, 20, 30, 40, 50, and 60 seconds
Port Selection Support
Push Button, Hotkeys, and Software
General Specifications
PC1 Cable Length (USB-C/Audio): 1.2m/4ft
PC2 Cable Length (USB-A/DisplayPort/Audio): 1.8m/6ft
MTBF
261,196 Hours
Physical Characteristics
Color
Black
Product Length
9,5 cm [3,7 in]
Product Width
8,0 cm [3,1 in]
Product Height
2,4 cm [0,9 in]
Weight of Product
380,0 g [13,4 oz]
Material
ABS
Power
Power Source
Bus Powered
Input Voltage
5V DC
Software
OS Compatibility
Windows 7, 8/8.1, 10, 11
macOS 10.12 - 10.15, 11, 12
ChromeOS
Special Notes / Requirements
Note
OS Compatibility refers to the available KVM software only. The KVM can be used without software on any platform
What's in the Box
Included in Package

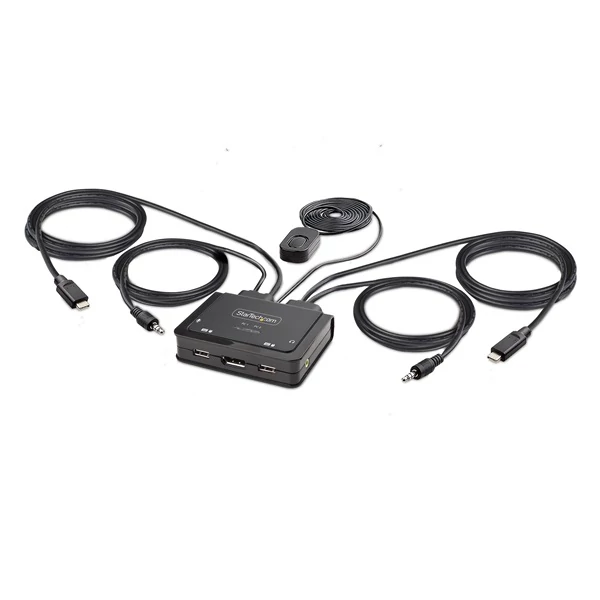

1 - KVM Switch
1 - 3.5mm 4 Position to 2x 3.5mm 3 Position Headset Adapter
1 - Quick-Start Guide
| Csatlakozók | USB-C, Displayport |
| Felbontás | 1920 x 1080 (FHD1080) 16:9 |
| Gyártó | STARTECH |
