Leírás és Paraméterek
Connector(s)
External Ports
1 - HDMI (19 pin)
3 - USB 3.2 Type-A (9 pin, Gen 1, 5Gbps)
1 - SD Slot
1 - RJ-45
1 - MicroSD
1 - USB Type-C (Power Delivery + Data, 24 Pin, 480Mbps)
Host Connectors
1 - USB 3.2 Type-C (24 pin, Gen 1, 5Gbps)
Environmental
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-10°C to 70°C (14°F to 185°F)
Humidity
5~90% RH (Non-condensing)
Hardware
4K Support
Yes
Fast-Charge Port(s)
No
Displays Supported
1
Interface
USB 3.2 Gen 1
Bus Type
USB-C
Industry Standards
HDMI 2.0
HDR10
DisplayPort 1.4
USB 3.2 Gen 1 (5Gbps)
USB Power Delivery Specification Rev. 3.0
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
Chipset ID
VIA - VL102
VIA - VL817
Realtek - RTL8153
Realtek - RTD2172A
Genesys Logic - GL823K
Terminus Tech - FE1.1S
Packaging Information
Package Length
6.7 in [17.0 cm]
Package Width
5.6 in [14.2 cm]
Package Height
1.2 in [3.0 cm]
Shipping (Package) Weight
4.7 oz [134.0 g]
Performance
Maximum Data Transfer Rate
5Gbps
Maximum Digital Resolutions
DisplayPort 1.4
16:9 Aspect Ratio: 4096x2160 60Hz
21:9 Aspect Ratio: 3440x1440 60Hz
DisplayPort 1.2
16:9 Aspect Ratio: 4096x2160 30Hz
21:9 Aspect Ratio: 3440x1440 30Hz
Type and Rate
USB 3.2 Gen 1 - 5 Gbit/s
UASP Support
Yes
Compatible Networks
10/100/1000 Mbps
PXE
Yes
Full Duplex Support
Yes
Physical Characteristics
Color
Space Gray
Product Length
2.0 in [5.0 cm]
Product Width
4.4 in [11.2 cm]
Product Height
0.5 in [1.2 cm]
Weight of Product
2.6 oz [75.0 g]
Material
Aluminum
Cable Length
11.8 in [30 cm]
Power
Power Delivery
100W
Output Voltage
5 DC
Power Consumption (In Watts)
15W
Software
OS Compatibility
Windows® 7, 8, 8.1, 10, 11
macOS 10.11 to 10.15, 11.0, 12.0, 13.0, 14.0
iPadOS
Android™
Linux® 3.5.x and up - LTS Versions only
Chrome OS™
Special Notes / Requirements
System and Cable Requirements
A host device with an available USB-C port (to ensure full adapter functionality, the host device's USB-C port must support USB Power Delivery 2.0 and DP alt mode).
Optional: USB-C power adapter (for example, your laptop's USB-C based power adapter).
Note
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure your host device's USB-C port supports USB Power Delivery and DP alt mode.
The adapter can connect to a host laptop's USB-C port that doesn't support USB Power Delivery. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.
A 4K-capable display is required to achieve 4096 x 2160p/3840 x 2160p resolution (4K is also known as 4K x 2K).
A 4K-capable computer is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K).
USB 3.2 Gen 1 (5Gbps) is also known as USB 3.1 Gen 1 (5Gbps) and USB 3.0 (5Gbps).
Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information regarding Power Delivery, consult the manufacturer of your hardware.
What's in the Box
Included in Package

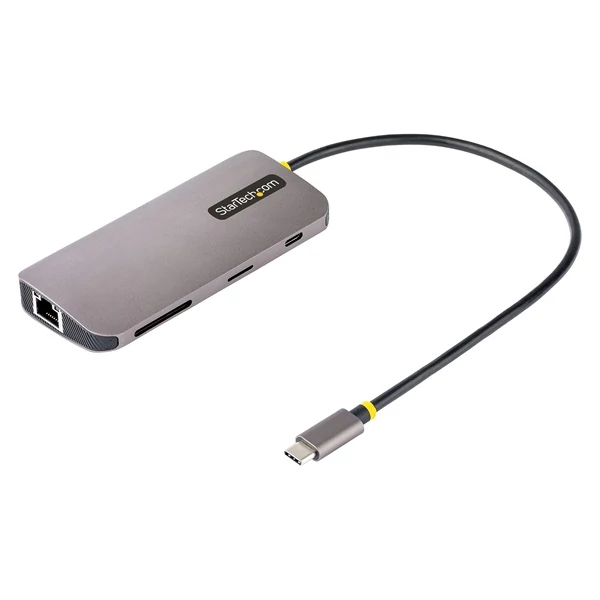

1 - USB-C Multiport Adapter
1 - Quick-Start Guide
| Csatlakozók | HDMI, USB, SD, LAN, USB-C |
| Csatoló | USB-C |
| Gyártó | STARTECH |
| Portok száma | 8 |
