Leírás és Paraméterek

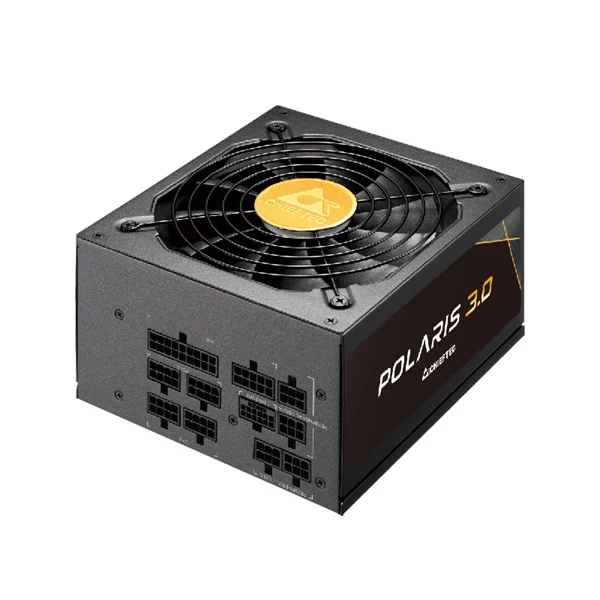

| Model | POLARIS 3.0 850W |
|---|---|
| Article no. | PPS-850FC-A3 |
| EAN code | 0753263078131 |
| Weight (without/with package) | 2.95kg / 3.55kg |
| AC Input | 100-240V / 12-8A |
| Frequency | 50 - 60Hz |
| +5V | 22A |
| +3,3V | 22A |
| +5V & +3,3V combined | 120W |
| +12V1 | 70.8A |
| +12V2 | - |
| +12V1, +12V2 combined | 850W |
| P.F. | >0.9 |
| -12V | 0.3A / 3.6W |
| +5VSB | 3.0A / 15W |
| Maximum Power | 850W |
| 20+4 PIN ATX | 1 |
|---|---|
| 8 PIN EPS (4+4) | 2 |
| 8 PIN PCIe (6+2) | 2 |
| 16 PIN PCIe GEN5 | 1 |
| SATA | 12 |
| MOLEX | 4 |
| 20+4 PIN ATX | 650 |
|---|---|
| 8 PIN EPS (4+4) | 2 x 650 |
| 8 PIN PCIe (6+2) | 600/100 |
| 16 PIN PCIe GEN5 | 600 |
| SATA | 3 x 550/100/100/100 |
| MOLEX | 550/100/100/100 |
| ATX12V Version | ATX 12V 3.0 |
|---|---|
| Efficiency | 80Plus Gold |
| Dimension (DxWxH) | 160 mm x 150 mm x 86 mm |
| PFC | Active PFC (0.9) |
| Fan | 135mm FDB fan |
| Security | AFC (Automatic Fan speed Control) OPP (Overload protection) OTP (Over Temperature Protection) OVP (Overvoltage protection) SCP (Short-circuit protection) SIP (Surge & Inrush Protection) UVP (Under Voltage protection) OCP (Over-Current Protection) |
| Warranty | 24 Months |
| Gyártó | CHIEFTEC |
| Hűtés típusa | Aktív |
| Teljesítmény | 850 |
