Leírás és Paraméterek

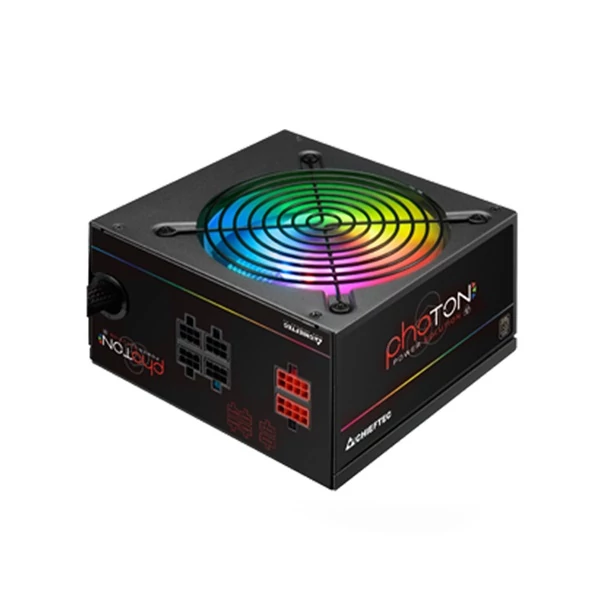

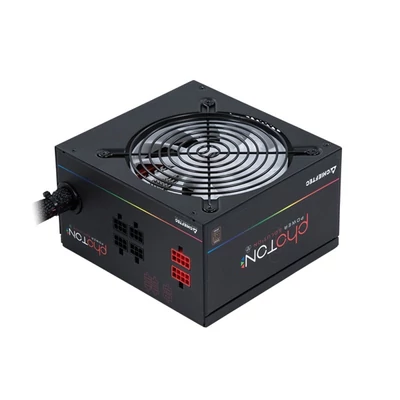

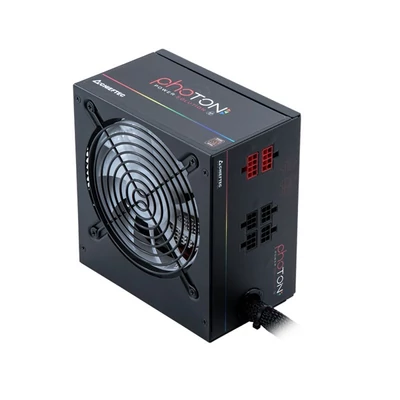

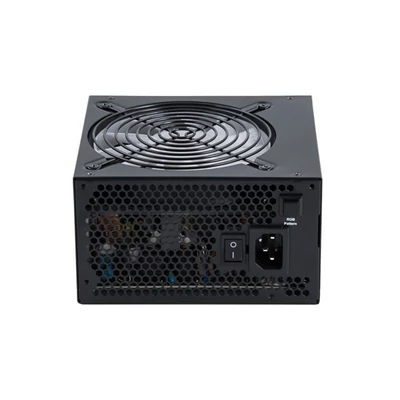

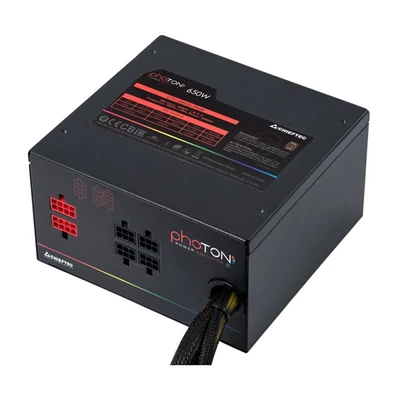

| Model | PHOTON 650W |
|---|---|
| Article no. | CTG-650C-RGB |
| EAN code | 0753263075918 |
| Weight (without/with package) | 2,14 kg / 2,54 kg |
| AC Input | 230V / 6,3A |
| Frequency | 50 Hz |
| +5V | 22A |
| +3,3V | 22A |
| +5V & +3,3V combined | 120W |
| +12V1 | 26A |
| +12V2 | 26A |
| +12V1, +12V2 combined | 585W |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VSB | 2,5A / 12,5W |
| Maximum Power | 650W |
| 20+4 PIN ATX | 1 |
|---|---|
| 8 PIN EPS (4+4) | 1 |
| 8 PIN PCIe (6+2) | 4 |
| SATA | 6 |
| MOLEX/FLOPPY | 4/2 |
| 20+4 PIN ATX | 550 |
|---|---|
| 8 PIN EPS (4+4) | 600 |
| 8 PIN PCIe (6+2) | 2x 550/150 |
| SATA | 2x 450/150/150 |
| MOLEX/FLOPPY | 2x 450/150/150 |
| ATX12V Version | ATX 12V 2.3 |
|---|---|
| Efficiency | >85% |
| Dimension (DxWxH) | 140 mm x 150 mm x 87 mm |
| PFC | Active PFC (0,9) |
| Fan | 120mm silent RGB Rainbow fan |
| Security | AFC (Automatic Fan speed Control) OPP (Over Power Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |
| Warranty | 24 Months |
| Gyártó | CHIEFTEC |
| Hűtés típusa | Low Noise (14cm) |
| Teljesítmény | 650 |
