Hardware
|
|
|
Chipset
|
• RTL8153
|
|
Interfaces
|
• RJ-45 Ethernet port (10/100/1000 Mbps)
• Three USB 3.0 Type-A ports
• USB Type-C connector
Additional adapter:
• USB Type-C port
• USB 3.0 Type-A connector
|
|
LEDs
|
• Speed 1
- Flashing red - data transmission at 10 Mbps or 100 Mbps
• Speed 2
- Flashing green - data transmission at 1000 Mbps
|
|
Functionality
|
|
|
Standards and Functions
|
• USB 3.0
• USB 2.0
• USB 1.1
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• Pause mode
• Wake-on-LAN
|
|
Data rate
|
• Up to 5 Gbps (USB 3.0)
• Up to 1000 Mbps (Ethernet)
|
|
System Requirements
|
|
|
Minimum System Requirements
|
• Available USB Type-C or USB 3.0 Type-A port1
• Windows 7/8/8.1/10 and above, macOS (OS X 10.8 and above)
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 83.7 ? 24 ? 16.5 mm
|
|
Weight
|
• 0.04 kg
|
|
Environmental Conditions
|
|
|
Power input
|
• From computer (USB bus powered)
|
|
Temperature
|
• Operating: 0 to 40 °C
• Storage: -10 to 70 °C
|
|
Humidity
|
• Operating: up to 85% non-condensing
• Storage: up to 85% non-condensing
|
|
Package Contents
|
|
|

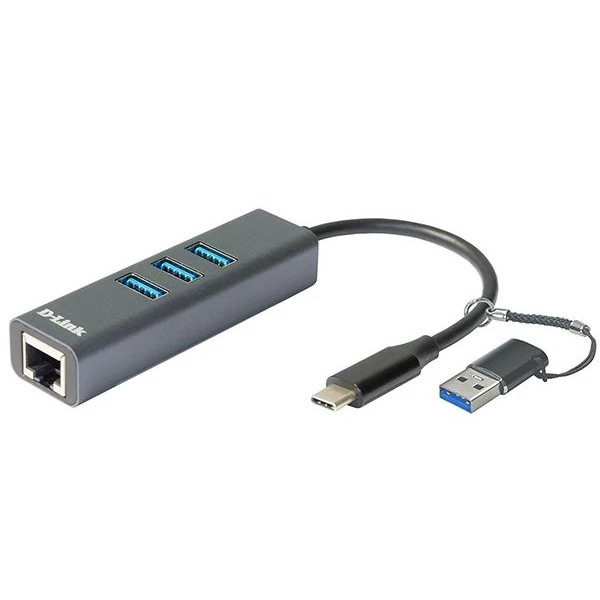

• DUB-2332 network adapter
• USB-A to USB-C adapter
• Quick Installation Guide
• Warranty documents
|
|
