Leírás és Paraméterek

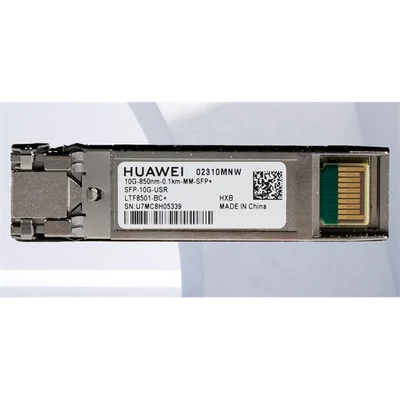

| Description | 10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC) |
| Part Number | 02310MNW |
| Model | SFP-10G-USR |
| Level-1 category | 10GE SFP+ Optical Modules |
| Module name | SFP-10G-USR |
| Form factor | SFP+ |
| Application standard | 10GBASE-USR (non-standard) |
| Connector type | LC |
| Optical fiber type | MMF |
| Working case temperature [°C(°F)] | 0°C to 70°C (32°F to 158°F) |
| Transmission rate [bit/s] | 10 Gbit/s |
| Target transmission distance [km] | Multimode fiber (OM3): 0.1 km |
| Center wavelength [nm] | 850 |
| Maximum Tx optical power [dBm] | -1.0 |
| Minimum Tx optical power [dBm] | -7.3 |
| Minimum extinction ratio [dB] | 3.0 |
| Rx sensitivity (AVG) [dBm] | -10.7 |
| Overload power (AVG) [dBm] | 0.5 |
| Gyártó | Huawei eKit |
