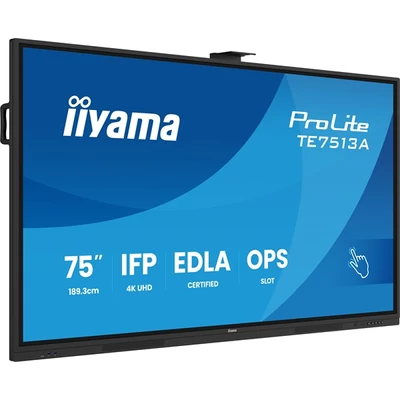

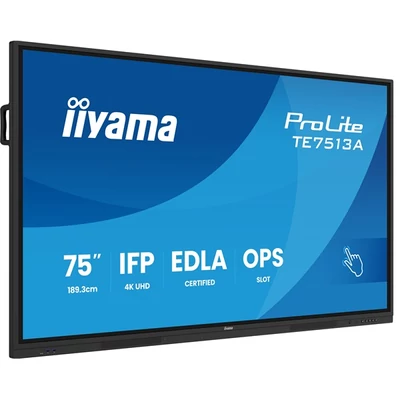

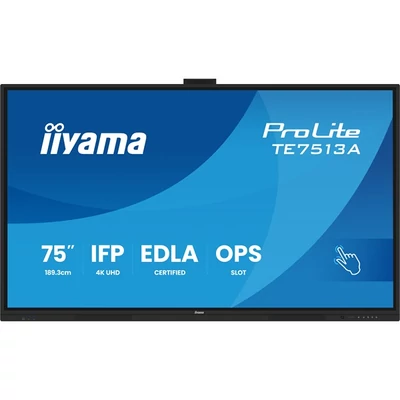

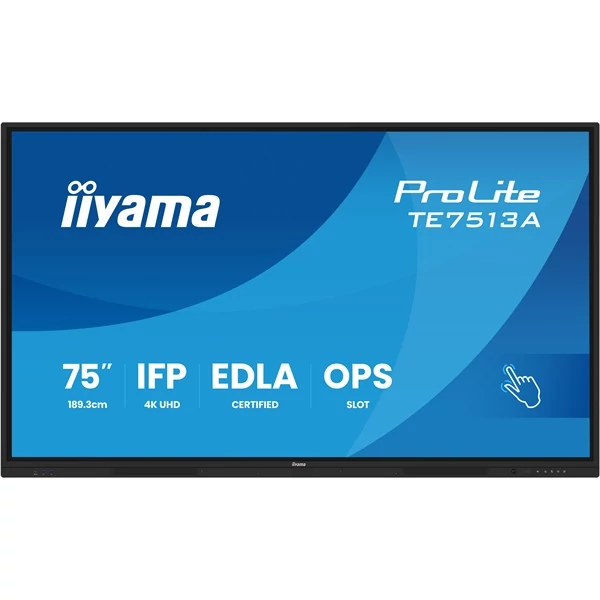

ProLite TE7513A-B1AG
DISPLAY CHARACTERISTICS
Design Thin bezel
Diagonal 75", 189.3cm
Panel IPS
Touch Glass Anti-Glare glass with Anti-Gloss treatment, Anti-Bacterial coating, Ultra Smooth writing, Zero-Gap Air Bonding
Panel IPS
Native resolution 3840 x 2160 (8.3 megapixel 4K UHD)
Aspect ratio 16:9
Panel brightness 450 cd/m²
Light transmittance 88%
Static contrast 1200:1
Response time (GTG) 8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07B 10bit (8bit + Hi-FRC) (NTSC 72%)
Horizontal Sync 30 - 135kHz
Viewable area W x H 1650 x 928mm, 65 x 36.5"
Pixel pitch 0.430mm
Bezel colour and finish black, matte
TOUCH
Touch technology PureTouch-IR?
Touch points 40, 10pt writing (HID, only with supported OS, 32pt Touch with Android)
Scan rate 200Hz
Touch accuracy +- 1mm
Touch method stylus, finger, glove
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejection yes
INTERFACES / CONNECTORS / CONTROLS
Digital signal input HDMI x2 (2.0, max. 3840x2160 @60Hz, YUV444, ARC on HDMI #1)
Audio input Mini jack x1 (Microphone)
Monitor control input RS-232c x1
Digital signal output HDMI x1 (2.0, max. 3840x2160 @60Hz, YUV444 / RGB444, MSD (Multi-Screen Display))
Audio output S/PDIF (Optical) x1
Monitor control output OPS Slot x1 (Intel OPS 80pin)
HDCP 2,3
USB ports x5 (media playback / peripherals / storage – front side: 2x 3.2 (Gen 1, 5Gbit,), 1x USB-C 3.2 (Gen 1, 5Gbit, 100W PD), side: 1x 3.2 (Gen 1, 5Gbit, 1x USB-C v.3.2 (Gen 1, 5Gbit, 100W PD))
RJ45 (LAN) x2 (IN / OUT, Auto switch for PC & Android, 1000MB)
FEATURES
Integrated software iiWare 21E (Android 14 OS) featuring Google EDLA, iiControl (DMS), WhiteBoard, web browser, file manager, cloud drives and iiShare for wireless connection with Windows/iOS/Android devices
WiFi yes (WiFi-6, Bluetooth 5.0)
Hardware CPU: Quad-core A73*4 (1.4GHz), GPU: G52 MC1, RAM: 8GB, ROM: 128GB
Extra Ambiant light Sensor, NFC Reader, PIR Motion Sensor, Slot for optional OPS PC, 4x Touch pen (anti-bacterial coating)
Media playback yes
Glass thickness 3.2mm
Glass hardness 7H
Housing (bezel) metal
OSD key lock yes
GENERAL
OSD languages EN, DE, FR, ES, IT, RU, CZ, NL, PL, SV, FI, DA, NB
Control buttons Power, Home, Touch-freeze, Volume, Input (source)
User controls general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode colour temp), settings (wireless & networks, share, device, personal, system)
Blue light reducer yes
Flicker free yes
Plug&Play DDC2B
Warranty 5 years (for details and eligible countries please check the Warranty section of our website)
MECHANICAL
Orientation landscape
Fanless design yes
VESA mounting 800 x 400mm
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF <
Display Port
Van
Egyéb csatlakozók
RS-232c
Fali rögzítés
800x400mm VESA falitartó-támogatás
Felbontás
3840 x 2160 (UHD)
Fényerő
450
Gyártó
IIYAMA
Hangszóró
Van
HDMI
Van
Képarány
16:9
Képátló
75
Kontrasztarány
1200
LAN
Van
Láthatósági szög
178/178
Panel típus
IPS
Szín
Fekete
Távirányitó
Van
Típus
Touch monitor
USB
Van
USB Type-C
Van
Válaszidő
8
Wireless
Van
